Overview - Auxiliary Radiator

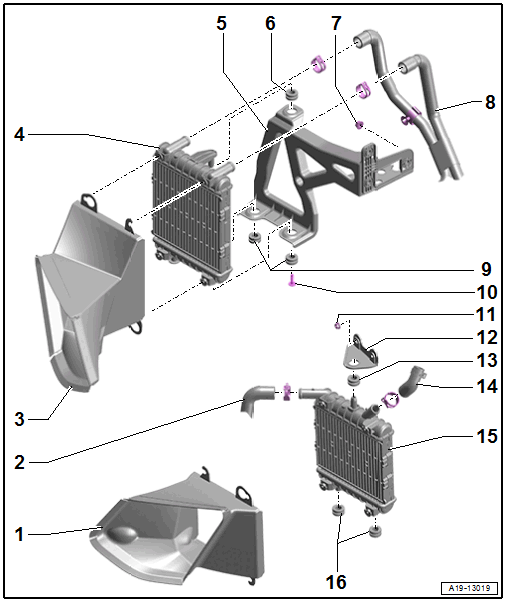

Fig 1: Exploded View Of Auxiliary Radiator

Courtesy of AUDI OF AMERICA, LLC

Air Duct
Coolant Hose
Air Duct
Right Auxiliary Radiator
- Equipped on some models
- Removing and Installing. Refer to RIGHT AUXILIARY RADIATOR, REMOVING AND INSTALLING .
Bracket
- For right auxiliary radiator
Rubber Bushing
Nut
- 20 Nm
Coolant Hoses
Rubber Bushing
Bolt
- 3.5 Nm
Nut
- 8 Nm
Bracket
Rubber Bushing
Coolant Hose
Left Auxiliary Radiator
- Removing and Installing. Refer to LEFT AUXILIARY RADIATOR, REMOVING AND INSTALLING .
Rubber Bushing
