Overview - Coolant Expansion Tank

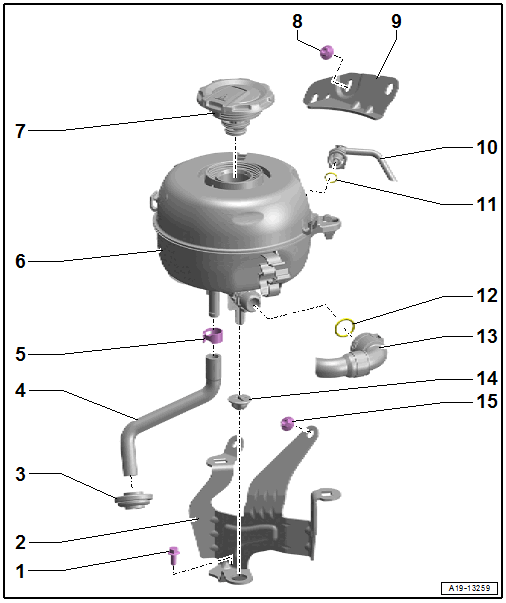

Fig 1: Overview - Coolant Expansion Tank

Courtesy of AUDI OF AMERICA, LLC

Bolt
- 8 Nm
Bracket
Grommet
Overflow Hose
Hose Clamp
Coolant Expansion Tank
Cap
- Checking the pressure relief valve. Refer to COOLING SYSTEM, CHECKING FOR LEAKS .
Nut
- 8 Nm
Bracket
- Equipped on some models
Coolant Ventilation Line
- Lift the clamp to remove
- Connecting. Refer to Figure.
O-Ring
O-Ring
Coolant Hose
- Lift the clamp to remove
- Connecting. Refer to Figure.
Rubber Bushing
Nut
- 8 Nm
