Overview - Coolant Pipes, 2.9L Engine-Side

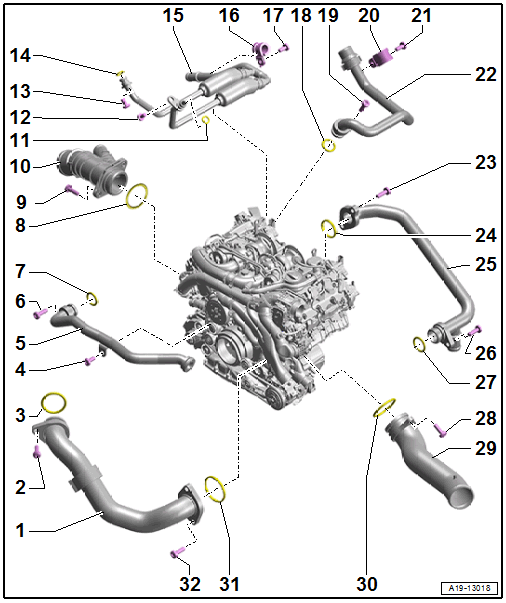

Fig 1: Exploded View Of Coolant Pipes, 2.9L Engine-Side

Courtesy of AUDI OF AMERICA, LLC

Left Front Coolant Pipe
- Removing and Installing. Refer to LEFT FRONT COOLANT PIPE, REMOVING AND INSTALLING, 2.9L ENGINE .
Bolt
- 9 Nm
O-Ring
- Replace after removing
Bolt
- 9 Nm
Front Coolant Pipe
- Replace after removing
- Removing and Installing. Refer to FRONT COOLANT PIPE, REMOVING AND INSTALLING, 2.9L ENGINE .
Bolt
- 9 Nm
O-Ring
- Replace after removing
O-Ring
- Replace after removing
Bolt
- 9 Nm
Connection
O-Ring
- Replace after removing
Bolt
- 9 Nm
Bolt
- 9 Nm
O-Ring
- Replace after removing
Large Right Rear Coolant Pipe
- Removing and Installing. Refer to LARGE RIGHT REAR COOLANT PIPE, REMOVING AND INSTALLING, 2.9L ENGINE .
Clamp
Bolt
- 9 Nm
O-Ring
- Replace after removing
Bolt
- 9 Nm
Clamp
Bolt
- 9 Nm
Small Right Rear Coolant Pipe
- Removing and Installing. Refer to SMALL RIGHT REAR COOLANT PIPE, REMOVING AND INSTALLING, 2.9L ENGINE .
Bolt
- 9 Nm
O-Ring
- Replace after removing
Rear left coolant pipe
- Removing and Installing. Refer to LEFT REAR COOLANT PIPE, REMOVING AND INSTALLING, 2.9L ENGINE .
Bolt
- 9 Nm
O-Ring
- Replace after removing
Bolt
- 9 Nm
Connection
O-Ring
- Replace after removing
O-Ring
- Replace after removing
Bolt
- 9 Nm
