Lower Coolant Pipe On Transmission, Removing And Installing: Removing

Courtesy of AUDI OF AMERICA, LLC

-- Remove the noise insulation. Refer to OVERVIEW - NOISE INSULATION .

-- Remove the bolts -arrows- and nut -2-.

-- Remove the crossbrace end plate -1-.

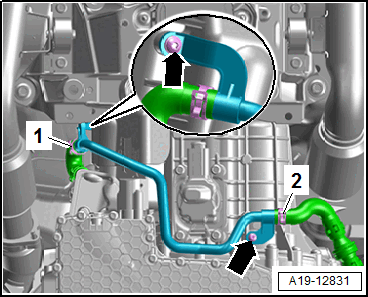

-- Clamp off the coolant hoses -1 and 2- with the Hose Clamps - Up To 25mm :3094  and remove them. To remove, loosen the how clamps.

Fig 1: Lower Coolant Pipe on Transmission - Tightening Specification

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows- and remove the coolant pipe.
