Check Valve In Refrigerant Line From Refrigerant Receiver, Removing And Installing: Removing

• For all the following work, immediately close the open lines and connections with clean plugs from the Engine Bung Set :VAS6122  .

• There are different versions of the check valves (different connections and nominal sizes for the flow). Note the correct allocation. Refer to Parts Information.

-- Remove the Refrigerant Expansion Valve 2 -N637-. Refer to Refrigerant Expansion Valve 2 -N637-, REMOVING AND INSTALLING .

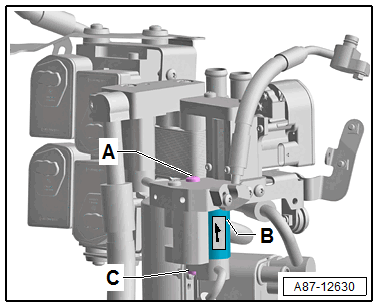

-- Remove the bolts -A and C-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the check valve -B-.
