A/C Pressure/Temperature Sensor -G395-, REMOVING AND INSTALLING: Installing
Install in the reverse order of removal while noting the following:

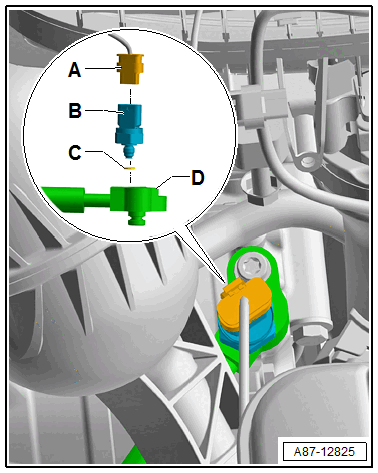

-- Check the connection -D- for contamination or damage. If necessary, clean or replace the refrigerant line.
-- Replace the O-ring -C- and lightly coat the O-ring with refrigerant oil before installing. Refer to REFRIGERANT CIRCUIT SEALS .
-- Install the sensor -B- and tighten.
-- Drain and fill the refrigerant circuit. Refer to Refrigerant Circuit (Refrigerant R134a Servicing, Refrigerant Circuit, Working with A/C Service Station) or Working with A/C Service Station (1 Of 2) / Working with A/C Service Station (2 Of 2) .
-- Switch the ignition on.
-- Initiate the basic setting of the A/C system using the Thermal Management Control Module -J1024- and activate the electric valves using the routine Stop routine refrigerant circuit filling/flushing in the Vehicle Diagnostic Tester.
-- Operate the A/C system after charging the refrigerant circuit. Refer to A/C SYSTEM, STARTING AFTER CHARGING REFRIGERANT CIRCUIT, VEHICLES WITH HIGH-VOLTAGE SYSTEM .
-- If the A/C Pressure/Temperature Sensor -G395- is being replaced, perform the address function.
Procedure
-- Connect the Vehicle Diagnostic Tester.
-- Select the Diagnostic mode and start the diagnosis.
-- Select the Test plan tab.
-- Select the Select individual test button and select the following tree structure consecutively:
- Diagnostic-capable systems
- 00C5 - Thermal Management Control Module -J1024
- 00C5 - Basic Setting
- → Pressure-temperature sensors automatic addressing
