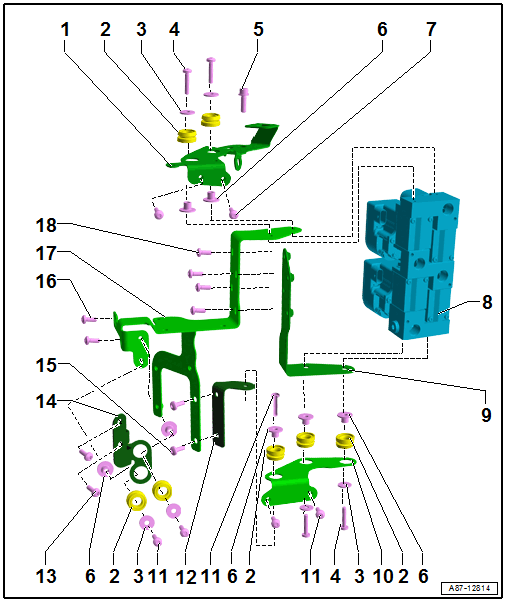

Heat Pump Valve Unit 4-Valve Block
- Bracket
- Rubber Bushing
- Spacer
- Bolts
- 8 Nm
- Bolt
- 25 Nm
- Guide Sleeves
- Bolts
- Tightening specification -item ) Bolts-.
- 4-Valve Block with Wiring Harness
- Removing and Installing. Refer to HEAT PUMP VALVE UNIT, REMOVING AND INSTALLING, 4-VALVE BLOCK THROUGH 02/2021 .
- Disassembling and assembling. Refer to HEAT PUMP VALVE UNIT, DISASSEMBLING AND ASSEMBLING .
- Bracket
- Bracket
- Bolts
- Tightening specification -item ) Bolts-.
- Bracket
- Bolts
- Tightening specification -item ) Bolts-.
- Bracket
- Bolts
- Tightening specification -item ) Bolts-.
- Bolts
- 8 Nm
- Bracket
- Bolts
- 8 Nm
