Component Location Overview - Components In Front Vehicle Interior

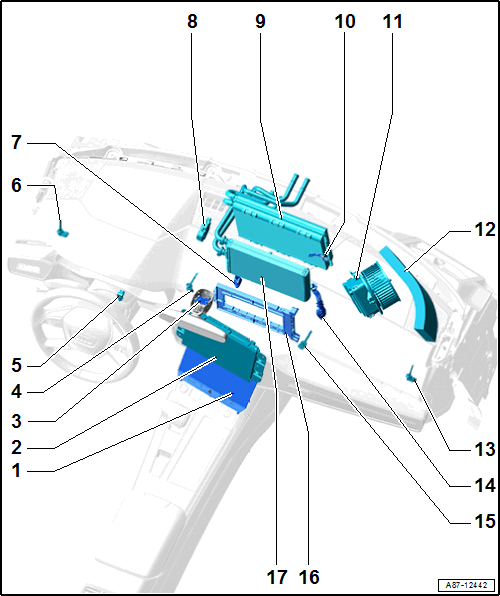

Fig 1: Exploded View Of Components In Front Vehicle Interior

Courtesy of AUDI OF AMERICA, LLC

1. Front Information Display Control Head 2 -J1060-
   • Removing and Installing. Refer to INFOTAINMENT SYSTEM DISPLAY, REMOVING AND INSTALLING .
2. Front Information Display Control Head -J685-
   • Removing and Installing. Refer to INFOTAINMENT SYSTEM DISPLAY, REMOVING AND INSTALLING .
3. Rain/Light Recognition Sensor -G397- with Humidity Sensor -G355-
   • Removing and Installing. Refer to Humidity Sensor -G355-, REMOVING AND INSTALLING .
4. Left Footwell Vent Temperature Sensor -G261-
   • Removing and Installing. Refer to Left Footwell Vent Temperature Sensor -G261-, REMOVING AND INSTALLING .
5. Instrument Panel Temperature Sensor -G56-
   • Right-hand drive is arranged in a mirror image
   • Removing and Installing. Refer to Instrument Panel Temperature Sensor -G56-, REMOVING AND INSTALLING .
6. Left Front Upper Body Vent Temperature Sensor -G385-
   • Removing and Installing. Refer to Left Front Upper Body Vent Temperature Sensor -G385-, REMOVING AND INSTALLING .
7. Left Condensation Water Drain Hose
   • Removing and Installing. Refer to CONDENSATION WATER DRAIN, REMOVING AND INSTALLING .
   • Check using the Vehicle Diagnostic Tester Refer to CONDENSATION WATER DRAIN, CHECKING .
8. Actuator
   • Example for all adjustment motors
   • Overview - Adjustment Motors. Refer to COMPONENT LOCATION OVERVIEW - FRONT ACTUATORS .
9. Evaporator
   • Removing and Installing. Refer to EVAPORATOR, REMOVING AND INSTALLING .
10. Evaporator Vent Temperature Sensor -G263-
    • Right-hand drive is arranged in a mirror image
    • Removing and Installing. Refer to Evaporator Vent Temperature Sensor -G263-, REMOVING AND INSTALLING .
11. Fresh Air Blower -V2- with Fresh Air Blower Control Module -J126-
    • Right-hand drive is arranged in a mirror image
    • Removing and Installing. Refer to Fresh Air Blower -V2- WITH Fresh Air Blower Control Module -J126-, REMOVING AND INSTALLING .
12. Dust and Pollen Filter
    • Right-hand drive is arranged in a mirror image
    • Removing and Installing. Refer to DUST AND POLLEN FILTER, REMOVING AND INSTALLING .
13. Right Front Upper Body Vent Temperature Sensor -G386-
    • Removing and Installing. Refer to Right Front Upper Body Vent Temperature Sensor -G386-, REMOVING AND INSTALLING .
14. Right Condensation Water Drain Hose
    • Removing and Installing. Refer to CONDENSATION WATER DRAIN, REMOVING AND INSTALLING .
    • Check using the Vehicle Diagnostic Tester Refer to CONDENSATION WATER DRAIN, CHECKING .
15. Right Footwell Vent Temperature Sensor -G262-
    • Removing and Installing. Refer to Right Footwell Vent Temperature Sensor -G262-, REMOVING AND INSTALLING .
16. Auxiliary Heater Heating Element -Z35-
    • Removing and Installing. Refer to Auxiliary Heater Heating Element -Z35-, REMOVING AND INSTALLING .
17. Heater Core
    • Removing and Installing. Refer to HEATER CORE, REMOVING AND INSTALLING .
