Shift Mechanism, Removing And Installing: Removing
WARNING: This page is about a different car, the 2024 Audi S7, 2024 Audi RS 7 Sportback, 2023 Audi S7, and 2023 Audi RS 7 Sportback. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the selector lever handle. Refer to SELECTOR LEVER HANDLE, REMOVING AND INSTALLING .
-- Remove the center console insert. Refer to CENTER CONSOLE, REMOVING AND INSTALLING .

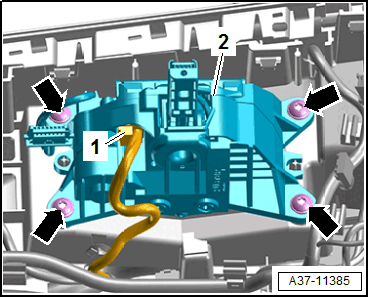

-- Disconnect the connector -1-.
-- Remove the bolts -arrows- and remove the selector mechanism -2-.
