Selector Lever Handle, Removing And Installing: Removing
WARNING: This page is about a different car, the 2024 Audi S7, 2024 Audi RS 7 Sportback, 2023 Audi S7, and 2023 Audi RS 7 Sportback. However, it is still accessible from the selected car via links, so may be relevant.
- Ignition switched off.

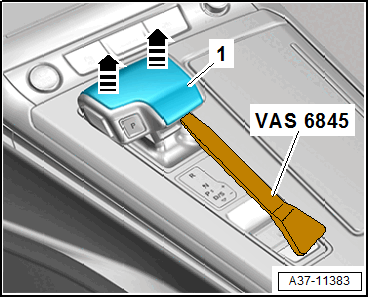

-- Pry out the selector lever handle upper section -1- using the scraper no. 1 from the :VAS6845 upward in direction of -arrows-.

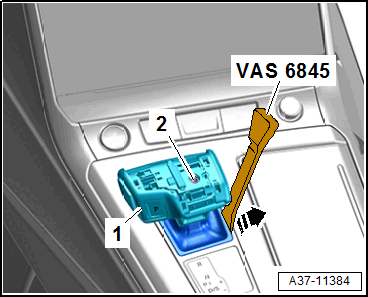

-- Pry out the selector lever boot using the scraper no. 3 from the :VAS6845 on the side in direction of -arrow-.
-- Remove the bolt -2-.
-- Pull the selector lever handle lower section -1- upward.
