Selector Lever Handle, Removing And Installing: Installing
WARNING: This page is about a different car, the 2024 Audi S7, 2024 Audi RS 7 Sportback, 2023 Audi S7, and 2023 Audi RS 7 Sportback. However, it is still accessible from the selected car via links, so may be relevant.
Install in the reverse order of removal while noting the following:

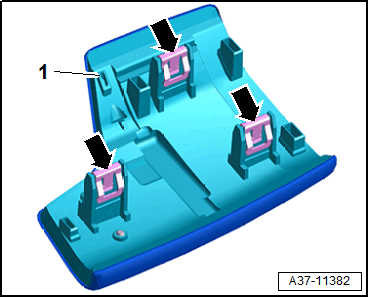

-- Check the clips -arrows- on the bottom of the selector lever handle upper section -1- are seated correctly, and if necessary press them in farther.
-- Attach the selector lever handle upper section to the selector lever handle lower section.
-- Clip in the selector lever boot on the Selector Lever Transmission Range Display -Y5-.
-- Check the selector mechanism. Refer to SELECTOR MECHANISM, CHECKING .
