Parking Lock Emergency Release Cable, Removing And Installing: Removing

WARNING: This page is about a different car, the 2024 Audi S7, 2024 Audi RS 7 Sportback, 2023 Audi S7, and 2023 Audi RS 7 Sportback. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Risk of accident due to the uncontrolled movement of the vehicle

With the motor running the uncontrolled movement of the vehicle can be possible if a selector lever position is engaged.

- Engage the parking brake.

-- Remove the selector lever handle. Refer to SELECTOR LEVER HANDLE, REMOVING AND INSTALLING .

-- Remove the center console. Refer to CENTER CONSOLE, REMOVING AND INSTALLING .

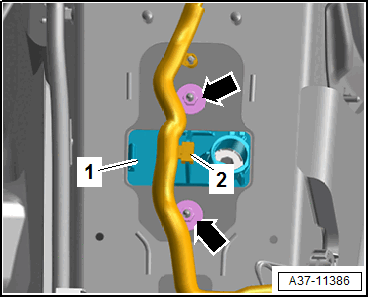

-- Free up the wiring harness -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the nuts -arrows- and lower the emergency release mount -1-.

-- Remove the noise insulation. Refer to OVERVIEW - NOISE INSULATION .

-- Disconnect and lower the tunnel heat shield slightly. Refer to appropriate Service Information .

-- Remove the bolts -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the front parking lock emergency release cable -1-.
