Emergency Release From P
- It is necessary to check the parking lock emergency release after performing any work on it or after removing and installing the transmission.
Releasing
Risk of accident due to the uncontrolled movement of the vehicle
With the motor running the uncontrolled movement of the vehicle can be possible if a selector lever position is engaged.
- Engage the parking brake.
-- Remove the trim from the front cupholder.

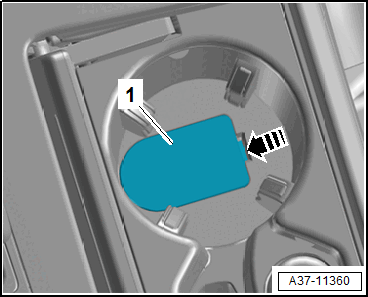

-- Release the catch in direction of -arrow- and remove the cover -1-.
-- Remove the release tool -1- from the vehicle tool kit.
-- Insert the release tool in the mount for the emergency release as shown.
- The release tool is transverse to the direction of travel.

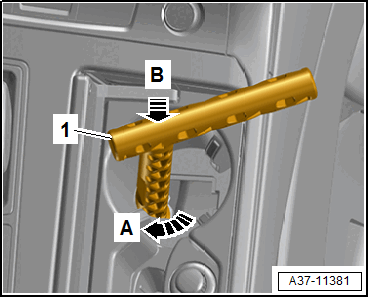

-- Turn the release tool 90° in direction of -arrow A-, at the same time push downward in direction of -arrow B- until it engages.
- The parking lock is released.
Tip:
- When the parking lock is emergency released, the "N" mode is displayed in the instrument cluster.
- The following message also appears in the instrument cluster: "Vehicle may roll! Cannot shift to P. Please apply parking brake".
Resetting the Release
-- Remove the release tool up to the lock (approximately 5 mm) and turn back up to the stop. Now the release tool can be removed.
- Never turn the release tool counter-clockwise, because this will damage the selector mechanism and the release tool.
- When the parking lock is set "P" must be displayed in the instrument cluster and in the Selector Lever Transmission Range Display -Y5-.
