Tunnel CROSSMEMBER, Removing And Installing: Removing

WARNING: This page is about a different car, the 2024 Audi S7, 2024 Audi RS 7 Sportback, 2023 Audi S7, and 2023 Audi RS 7 Sportback. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Remove the noise insulation. Refer to OVERVIEW - NOISE INSULATION .

-- Remove the bolts -arrows- from the front exhaust pipe.

-- Loosen the clamping sleeve on the EGR pipe -arrow-.

Courtesy of AUDI OF AMERICA, LLC

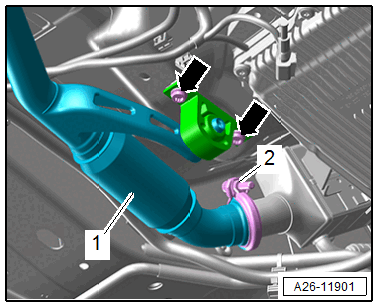

-- Loosen the screw-type clamp -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows- and remove the exhaust pipe -1-.

-- Remove the bolts -arrows- and nut -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the end panel -1-.

-- Mount the :T10337 on the :VAS6931 and attach it under the transmission.

Courtesy of AUDI OF AMERICA, LLC

To prevent damage to the driveshaft heat shield, place a suitable piece of wood -arrow- underneath.

CAUTION:

Risk of accident due to lowering or lifting the vehicle with the engine and transmission jack underneath.

- Never lift or lower a vehicle with the engine and transmission jack underneath.

- Never place the engine and transmission jack longer then required under the vehicle.

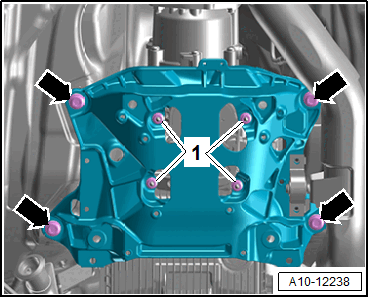

-- Remove the bolts -arrows- and the nuts -1- and remove the tunnel crossmember.
