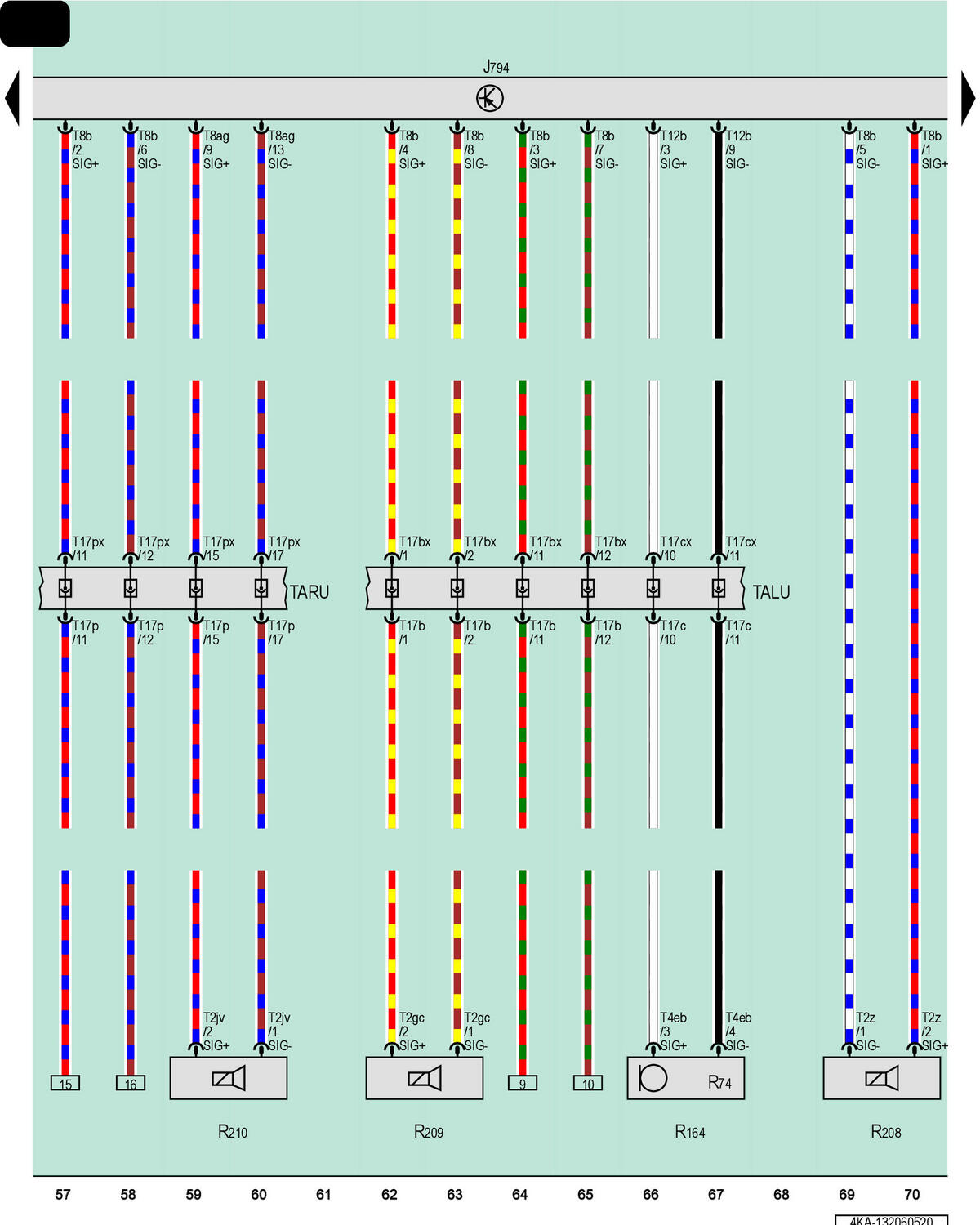

Information Electronics Control Module 1, Microphone Unit In Front Roof Module, Center Speaker, Left Effects Speaker, Right Effects Speaker

Courtesy of AUDI OF AMERICA, LLC

J794

Information Electronics Control Module 1

R74

Interior Microphone

R164

Microphone Unit in Front Roof Module

R208

Center Speaker

R209

Left Effects Speaker

R210

Right Effects Speaker

T2gc

2-Pin Connector, Black

T2jv

2-Pin Connector, Black

T2z

2-Pin Connector, Blue

T4eb

4-Pin Connector, Black

T8ag

8-Pin Connector, Black

T8b

8-Pin Connector, Brown

T12b

12-Pin Connector, Blue

T17b

17-Pin Connector, Blue

T17bx

17-Pin Connector, Blue

T17c

17-Pin Connector, Red

T17cx

17-Pin Connector, Red

T17p

17-Pin Connector, Black

T17px

17-Pin Connector, Black

TALU

Coupling Point on Left A-Pillar, Bottom

TARU

Coupling Point on Right A-Pillar, Bottom
