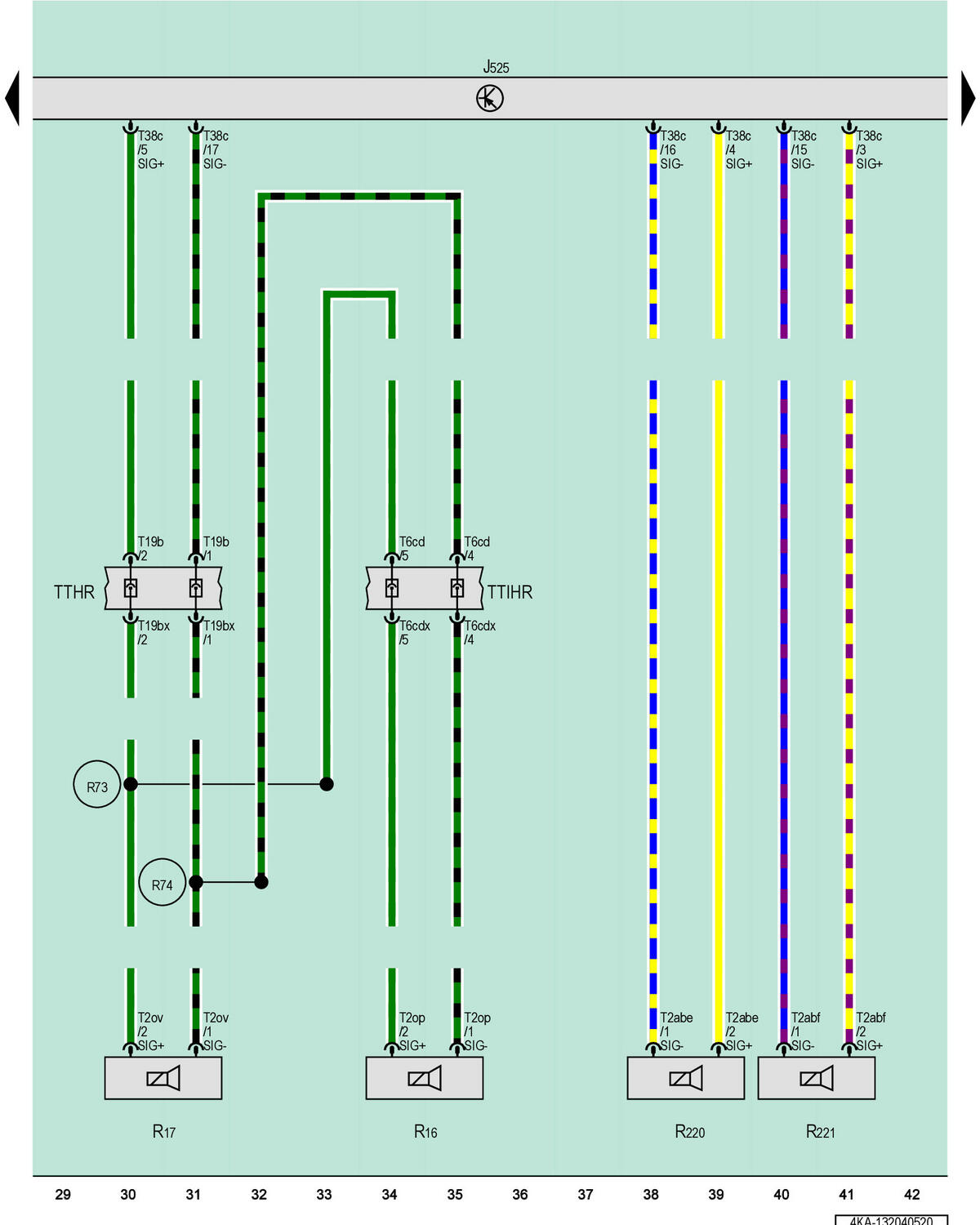

Digital Sound System Control Module, Right Rear Treble Speaker, Right Rear Bass Speaker, Left Front Treble Speaker 2, Right Front Treble Speaker 2

Courtesy of AUDI OF AMERICA, LLC

J525

Digital Sound System Control Module

R16

Right Rear Treble Speaker

R17

Right Rear Bass Speaker

R220

Left Front Treble Speaker 2

R221

Right Front Treble Speaker 2

T2abe

2-Pin Connector, Brown

T2abf

2-Pin Connector, Brown

T2op

2-Pin Connector, Black

T2ov

2-Pin Connector, Black

T6cd

6-Pin Connector, Red

T6cdx

6-Pin Connector, Red

T19b

19-Pin Connector, Black

T19bx

19-Pin Connector, Black

T38c

38-Pin Connector, Black

TTHR

Right Rear Door Coupling Point

TTIHR

Coupling Point in Right Rear Door

R73

Speaker Positive Connection (in Right Rear Door Wiring Harness)

R74

Speaker Negative Connection (in Right Rear Door Wiring Harness)
