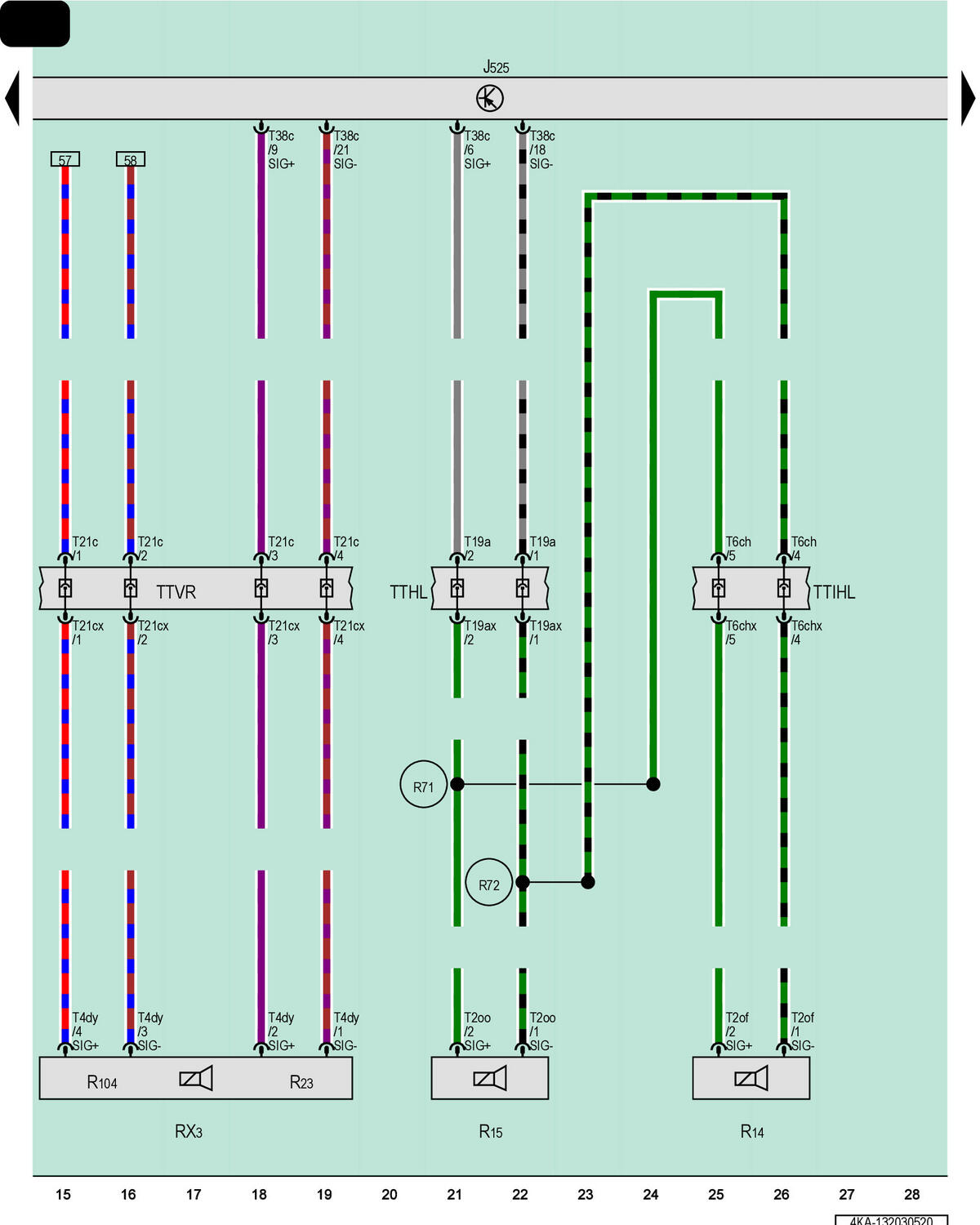

Digital Sound System Control Module, Right Front Door Speaker, Left Rear Treble Speaker, Left Rear Bass Speaker

Courtesy of AUDI OF AMERICA, LLC

J525

Digital Sound System Control Module

RX3

Right Front Door Speaker

R14

Left Rear Treble Speaker

R15

Left Rear Bass Speaker

R23

Right Front Bass Speaker

R104

Right Front Midrange Speaker

T2of

2-Pin Connector, Black

T2oo

2-Pin Connector, Black

T4dy

4-Pin Connector, Black

T6ch

6-Pin Connector, Red

T6chx

6-Pin Connector, Red

T19a

19-Pin Connector, Black

T19ax

19-Pin Connector, Black

T21c

21-Pin Connector, Black

T21cx

21-Pin Connector, Black

T38c

38-Pin Connector, Black

TTHL

Left Rear Door Coupling Point

TTIHL

Coupling Point in Left Rear Door

TTVR

Right Front Door Coupling Point

R71

Speaker Positive Connection (in Left Rear Door Wiring Harness)

R72

Speaker Negative Connection (in Left Rear Door Wiring Harness)
