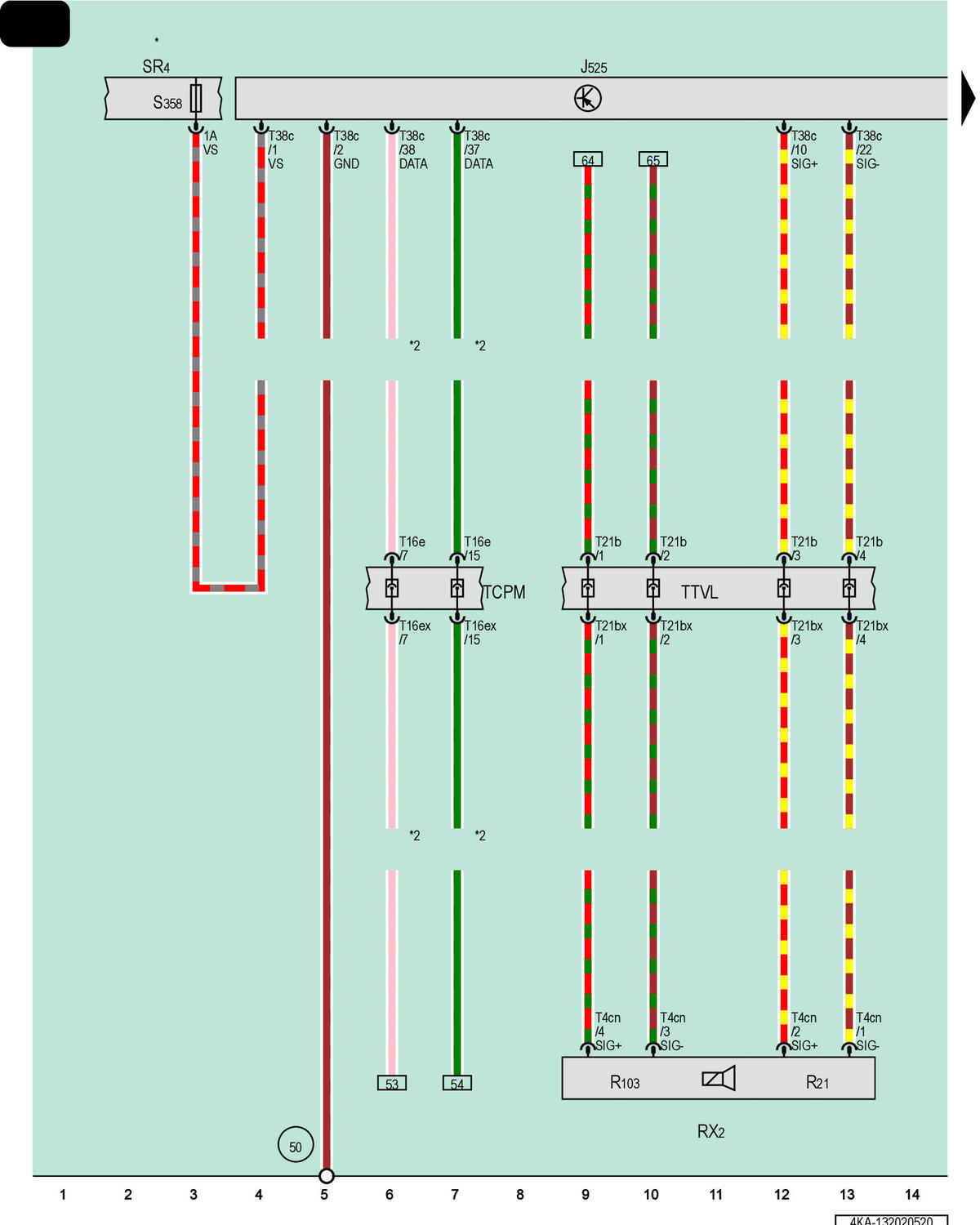

Digital Sound System Control Module, Left Front Door Speaker, Digital Sound System Fuse

Courtesy of AUDI OF AMERICA, LLC

J525

Digital Sound System Control Module

RX2

Left Front Door Speaker

R21

Left Front Bass Speaker

R103

Left Front Midrange Speaker

SR4

Relay and Fuse Panel 4

S358

Digital Sound System Fuse

T4cn

4-Pin Connector, Black

T16e

16-Pin Connector, Black

T16ex

16-Pin Connector, Black

T21b

21-Pin Connector, Black

T21bx

21-Pin Connector, Black

T38c

38-Pin Connector, Black

TCPM

Coupling Point on Instrument Panel, Center

TTVL

Left Front Door Coupling Point

50

Ground Connection in Luggage Compartment, Left

*

Refer to Applicable Wiring Diagram for Fuse Positions

*2

Audio Bus Data Bus Wire
