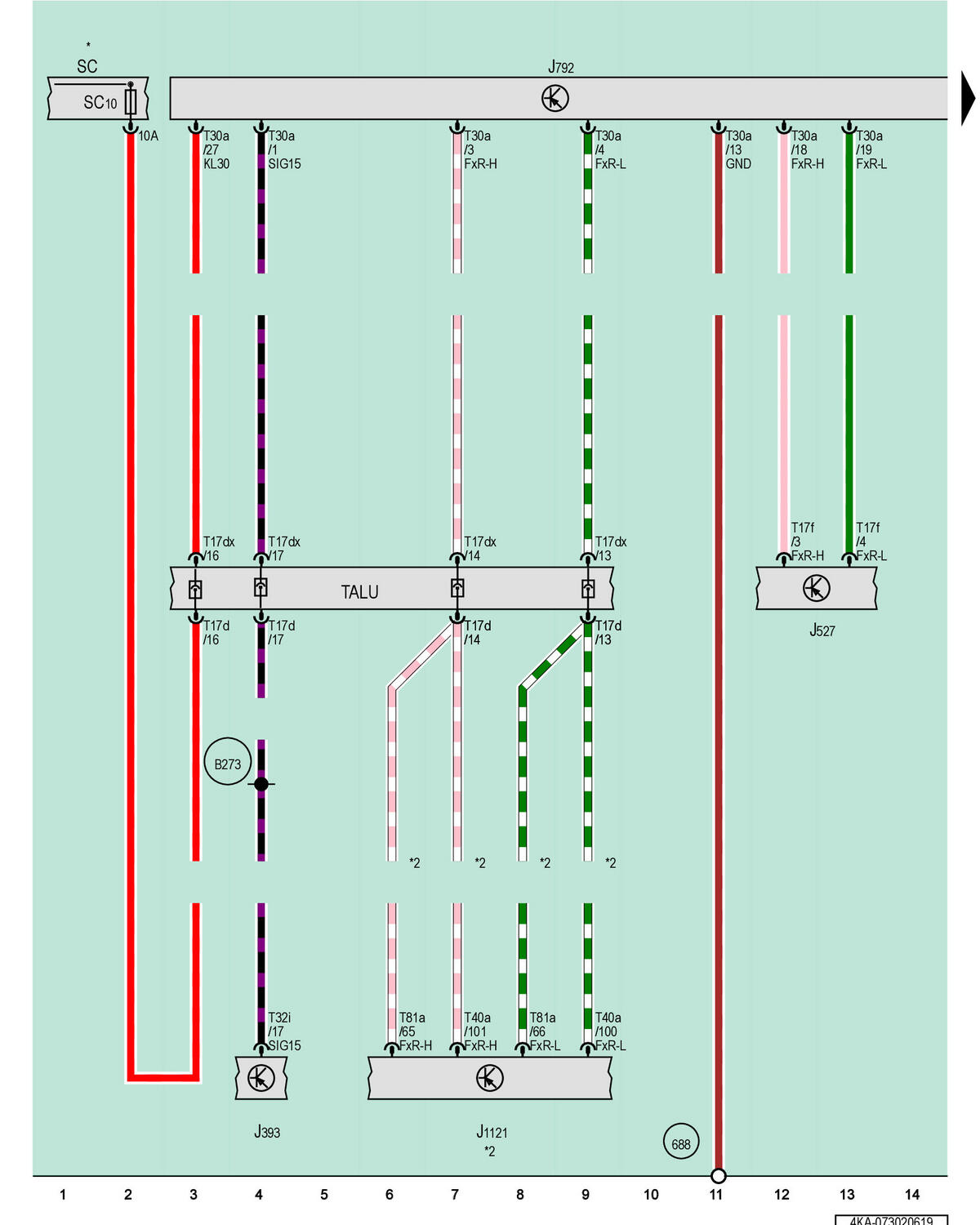

Active Steering Control Module
J393
Comfort System Central Control Module
J527
Steering Column Electronics Control Module
J792
Active Steering Control Module
J1121
Driver Assistance Systems Control Module
SC
Fuse Panel C
SC10
Fuse 10 (On Fuse Panel C)
T17d
17-Pin Connector, Green
T17dx
17-Pin Connector, Green
T17f
17-Pin Connector, Yellow
T30a
30-Pin Connector, Black
T32i
32-Pin Connector, Naturally Cloudy, Black
T40a
40-Pin Connector, Black
T81a
81-Pin Connector, Black
TALU
Coupling Point on Left A-Pillar, Bottom
688
Ground Connection 2 on Center Tunnel
B273
Positive Connection (15) (in Main Wiring Harness)
*
Refer to Applicable Wiring Diagram for Fuse Positions
*2
Depending on Equipment
