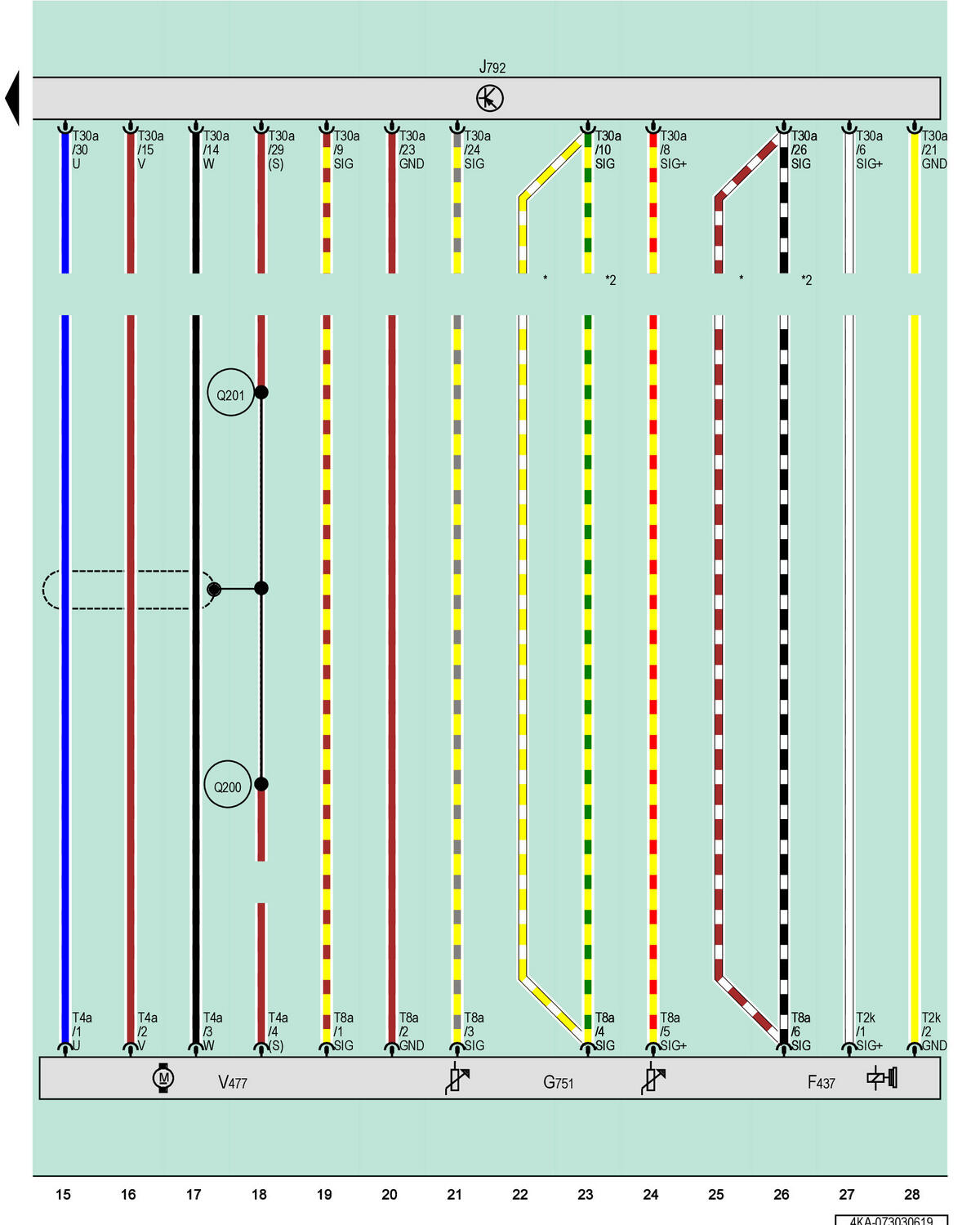

Active Steering Control Module, Active Steering Motor

Courtesy of AUDI OF AMERICA, LLC

F437

Active Steering Safety Lock Actuator

G751

Active Steering Motor Rotor Position Sensor

J792

Active Steering Control Module

T2k

2-Pin Connector, Black

T4a

4-Pin Connector, Black

T8a

8-Pin Connector, Black

T30a

30-Pin Connector, Black

V477

Active Steering Motor

Q200

Connection in Electromechanical Steering Wiring Harness

Q201

Connection 2 in Electromechanical Steering Wiring Harness

*

Omitted as a Running Change

*2

Running Change
