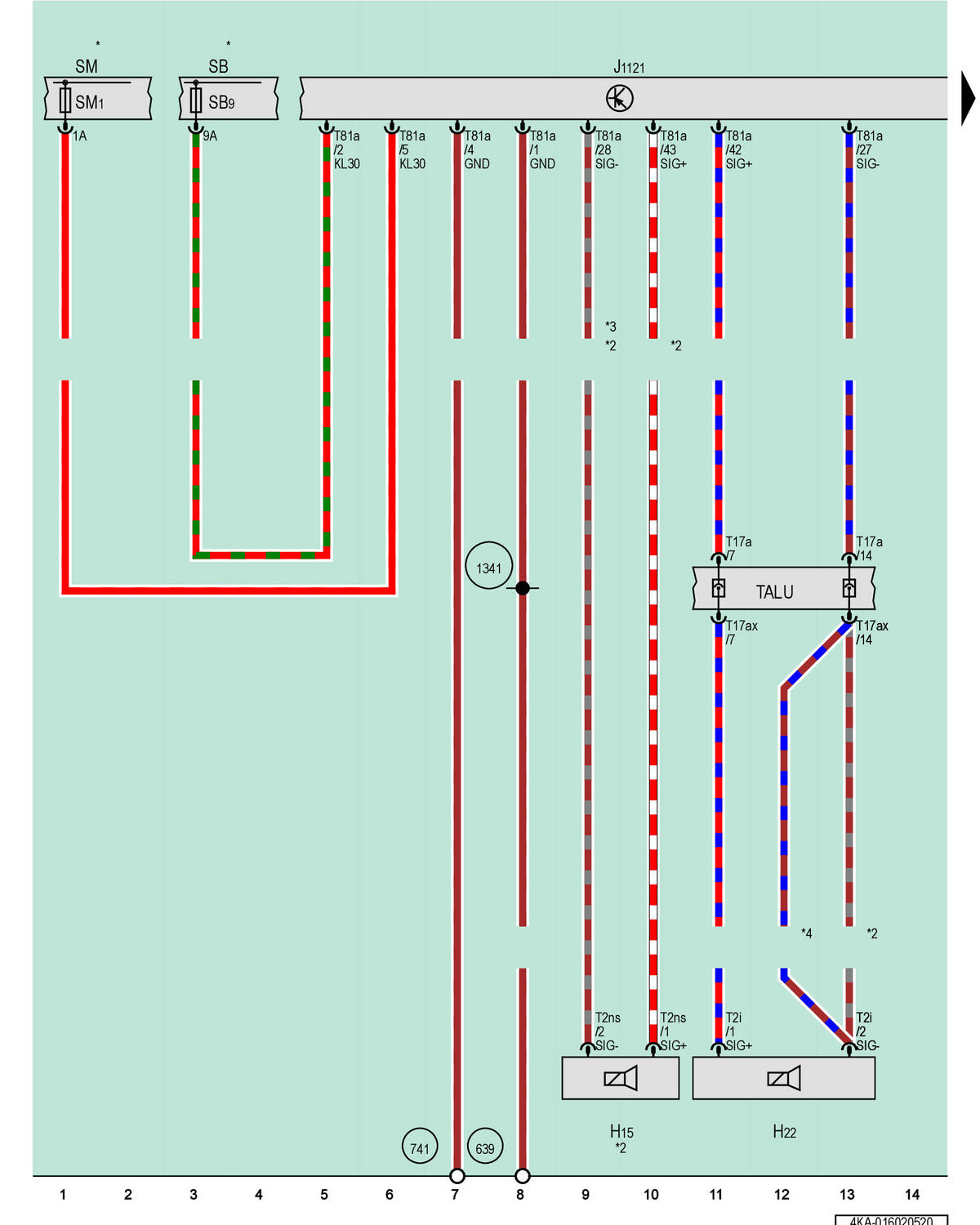

Rear Parking Aid Warning Buzzer, Front Parking Aid Warning Buzzer, Driver Assistance Systems Control Module

Courtesy of AUDI OF AMERICA, LLC

H15

Rear Parking Aid Warning Buzzer

H22

Front Parking Aid Warning Buzzer

J1121

Driver Assistance Systems Control Module

SB

Fuse Panel B

SB9

Fuse 9 (On Fuse Panel B)

SM

Fuse Panel M

SM1

Fuse 1 on Fuse Panel M

T2i

2-Pin Connector, Black

T2ns

2-Pin Connector, Black

T17a

17-Pin Connector, White

T17ax

17-Pin Connector, White

T81a

81-Pin Connector, Black

TALU

Coupling Point on Left A-Pillar, Bottom

639

Ground Connection on Left A-Pillar

741

Ground Connection Under Left Front Seat

1341

Ground Connection 43 (in Main Wiring Harness)

*

Refer to Applicable Wiring Diagram for Fuse Positions

*2

Omitted as a Running Change

*3

The Color of the Wires Depends on Vehicle Equipment

*4

Running Change
