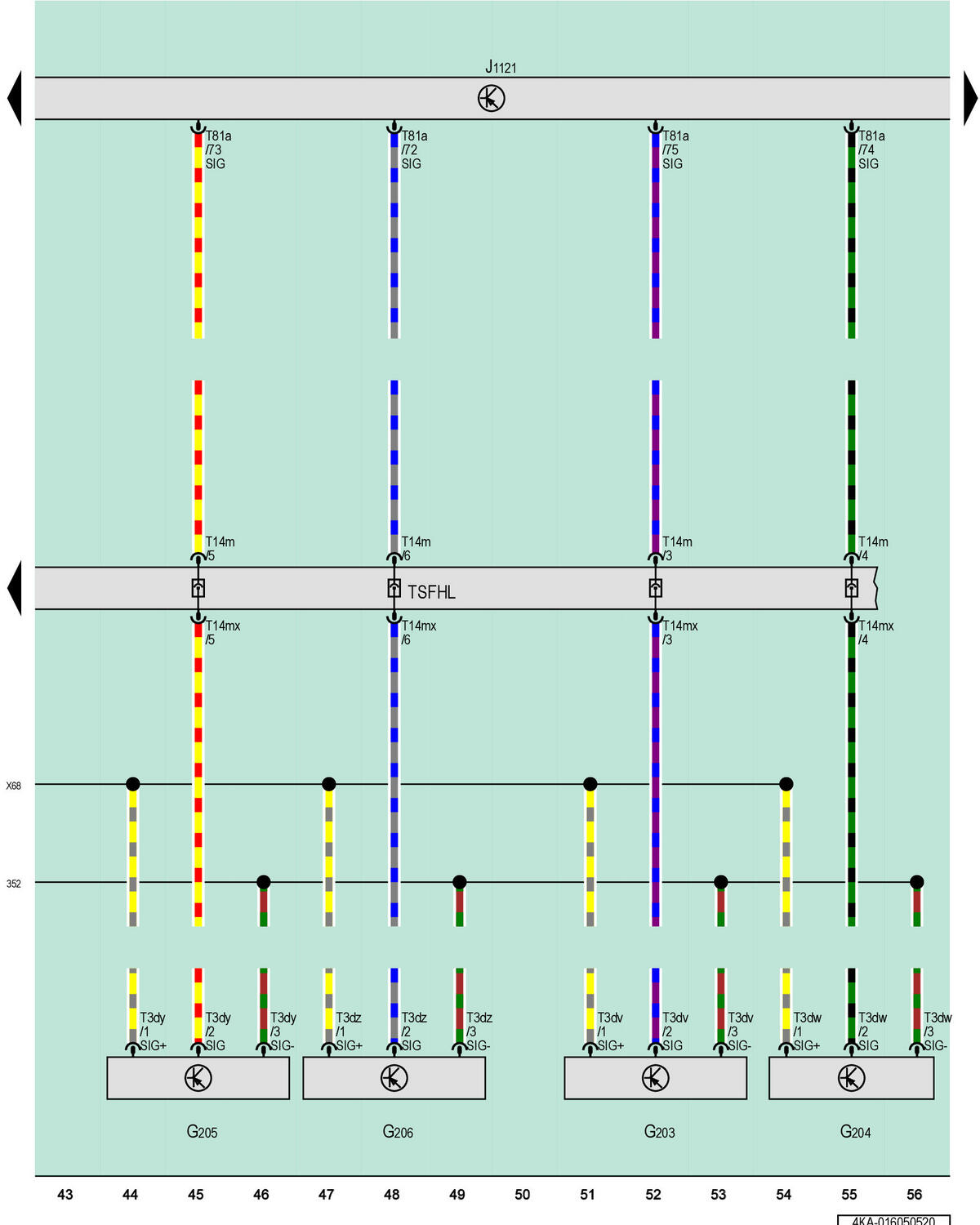

Left Rear Parking Aid Sensor, Left Rear Center Parking Aid Sensor, Right Rear Center Parking Aid Sensor, Right Rear Parking Aid Sensor, Driver Assistance Systems Control Module
G203
Left Rear Parking Aid Sensor
G204
Left Rear Center Parking Aid Sensor
G205
Right Rear Center Parking Aid Sensor
G206
Right Rear Parking Aid Sensor
J1121
Driver Assistance Systems Control Module
T3dv
3-Pin Connector, Black
T3dw
3-Pin Connector, Black
T3dy
3-Pin Connector, Black
T3dz
3-Pin Connector, Black
T14m
14-Pin Connector, Black
T14mx
14-Pin Connector, Black
T81a
81-Pin Connector, Black
TSFHL
Coupling Point on Left Rear Bumper
352
Parking Aid Ground Connection (in Rear Bumper Wiring Harness)
X68
Parking Aid Connection (in Rear Bumper Wiring Harness)
