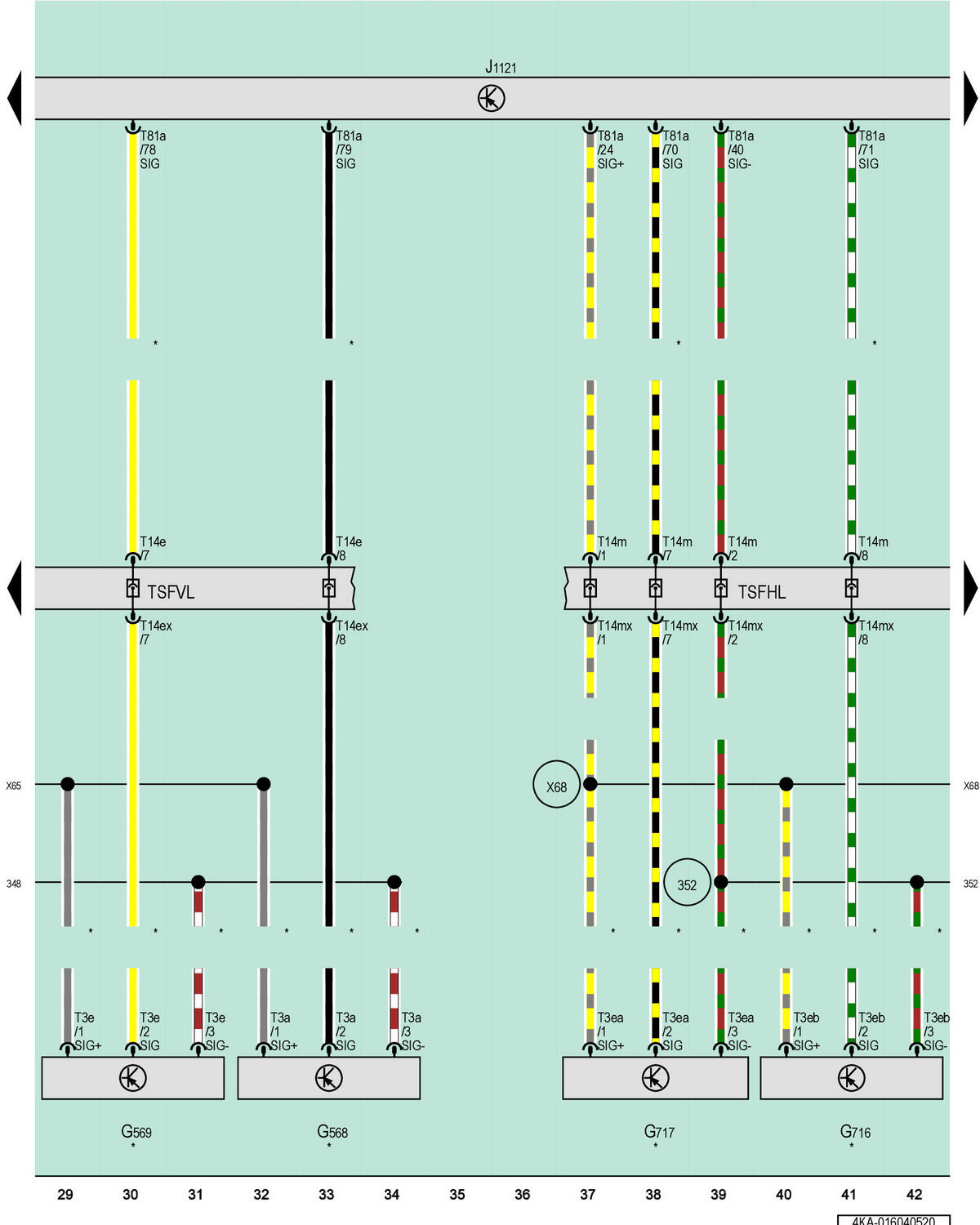

Left Front Parallel Parking Assistance Sensor, Right Front Parallel Parking Assistance Sensor, Left Rear Parallel Parking Assistance Sensor, Right Rear Parallel Parking Assistance Sensor, Driver Assistance Systems Control Module
G568
Left Front Parallel Parking Assistance Sensor
G569
Right Front Parallel Parking Assistance Sensor
G716
Left Rear Parallel Parking Assistance Sensor
G717
Right Rear Parallel Parking Assistance Sensor
J1121
Driver Assistance Systems Control Module
T3a
3-Pin Connector, Black
T3e
3-Pin Connector, Black
T3ea
3-Pin Connector, Black
T3eb
3-Pin Connector, Black
T14e
14-Pin Connector, Black
T14ex
14-Pin Connector, Black
T14m
14-Pin Connector, Black
T14mx
14-Pin Connector, Black
T81a
81-Pin Connector, Black
TSFHL
Coupling Point on Left Rear Bumper
TSFVL
Coupling Point on Left Front Bumper
348
Parking Aid Ground Connection (in Front Bumper Wiring Harness)
352
Parking Aid Ground Connection (in Rear Bumper Wiring Harness)
X65
Parking Aid Connection (in Front Bumper Wiring Harness)
X68
Parking Aid Connection (in Rear Bumper Wiring Harness)
*
For Vehicles with Parallel Parking Assistance
