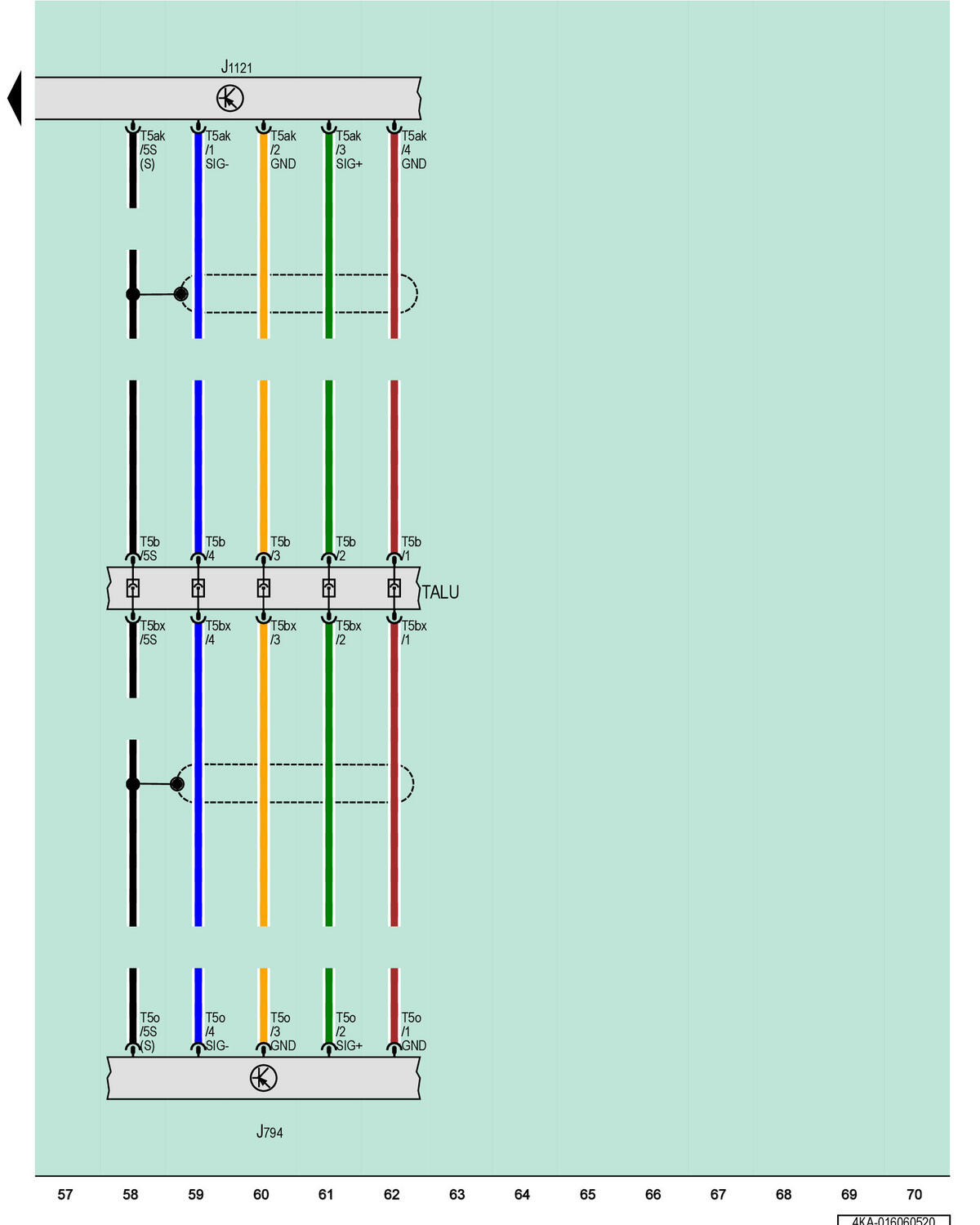

Information Electronics Control Module 1, Driver Assistance Systems Control Module

Courtesy of AUDI OF AMERICA, LLC

J794

Information Electronics Control Module 1

J1121

Driver Assistance Systems Control Module

T5ak

5-Pin Connector, Black

T5b

5-Pin Connector, White

T5bx

5-Pin Connector, White

T5o

5-Pin Connector, Green

TALU

Coupling Point on Left A-Pillar, Bottom
