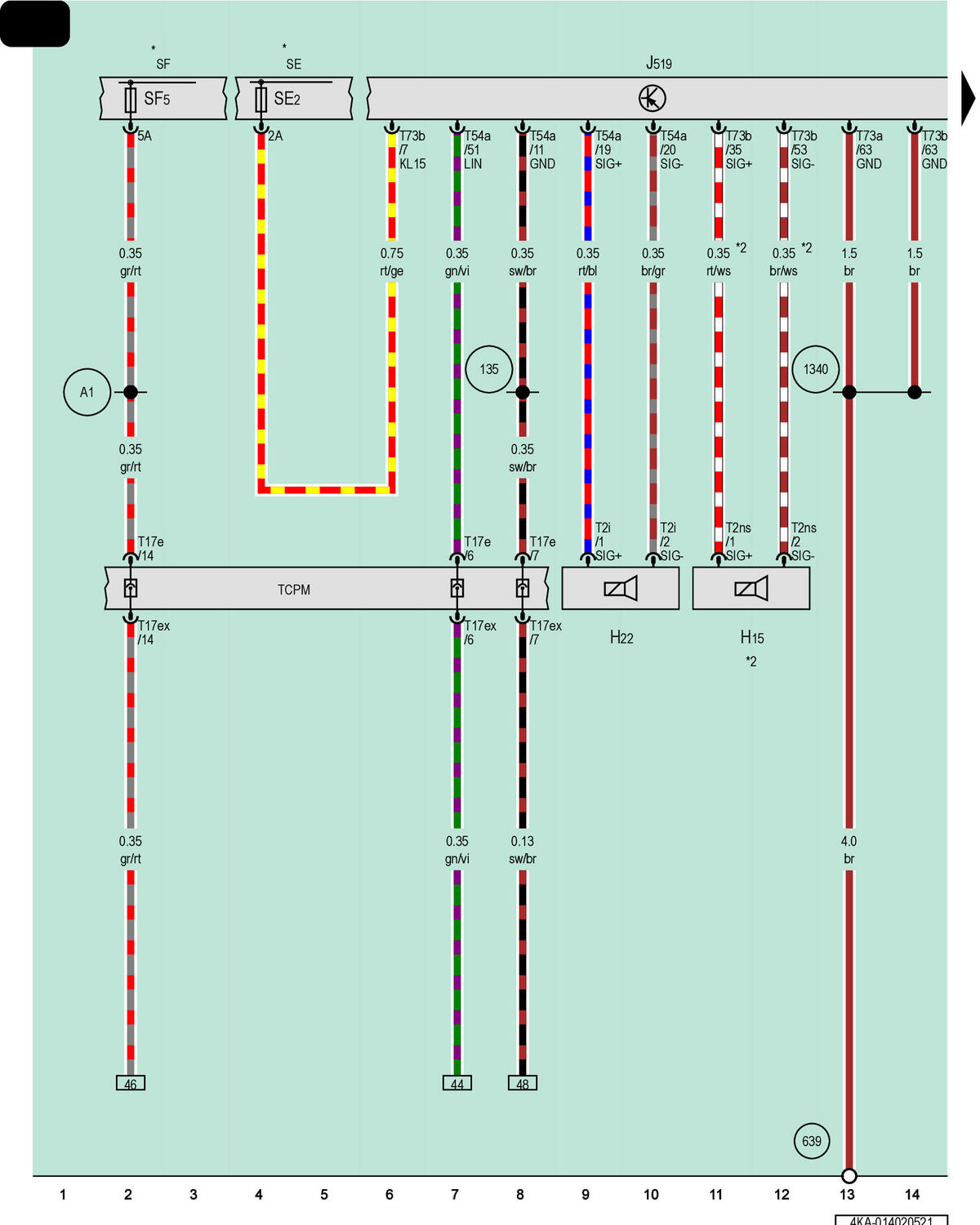

Rear Parking Aid Warning Buzzer, Front Parking Aid Warning Buzzer, Vehicle Electrical System Control Module

Courtesy of AUDI OF AMERICA, LLC

H15

Rear Parking Aid Warning Buzzer

H22

Front Parking Aid Warning Buzzer

J519

Vehicle Electrical System Control Module

SE

Fuse Panel E

SE2

Fuse 2 on Fuse Panel E

SF

Fuse Panel F

SF5

Fuse 5 (On Fuse Panel F)

T2i

2-Pin Connector, Black

T2ns

2-Pin Connector, Black

T17e

17-Pin Connector, Black

T17ex

17-Pin Connector, Black

T54a

54-Pin Connector, Black

T73a

73-Pin Connector, Black, Naturally Cloudy

T73b

73-Pin Connector, Black, Black

TCPM

Coupling Point on Instrument Panel, Center

135

Ground Connection 2 (in Instrument Panel Wiring Harness)

639

Ground Connection on Left A-Pillar

1340

Ground Connection 42 (in Main Wiring Harness)

A1

Positive Connection 30a (in Instrument Panel Wiring Harness)

*

Refer to Applicable Wiring Diagram for Fuse Positions

*2

Omitted as a Running Change
