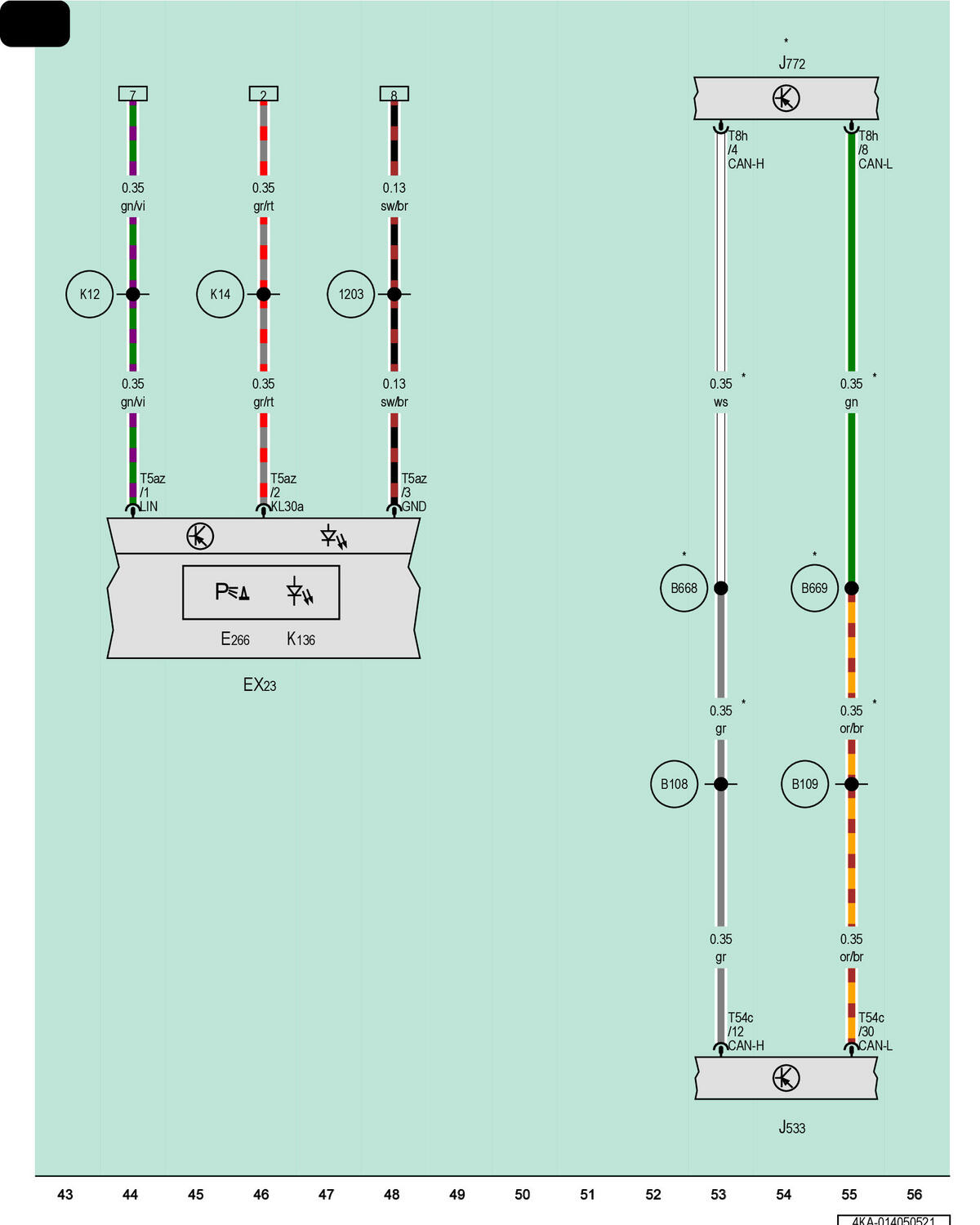

Center Console Switch Module 1, Data Bus On Board Diagnostic Interface, Rearview Camera System Control Module
EX23
Center Console Switch Module 1
E266
Parking Aid Button
J533
Data Bus on Board Diagnostic Interface
J772
Rearview Camera System Control Module
K136
Parking Aid Indicator Lamp
T5az
5-Pin Connector, Black
T8h
8-Pin Connector, Black
T54c
54-Pin Connector, Black
1203
Ground Connection (in Center Console Wiring Harness)
B108
CAN Bus Extended High Connection 1 (in Main Wiring Harness)
B109
CAN Bus Extended Low Connection 1 (in Main Wiring Harness)
B668
CAN Bus Extended High Connection 2 (in Main Wiring Harness)
B669
CAN Bus Extended Low Connection 2 (in Main Wiring Harness)
K12
LIN Bus Connection (in Center Console Wiring Harness)
K14
Connection (30) (in Center Console Wiring Harness)
*
For Vehicles with Rearview Camera System
