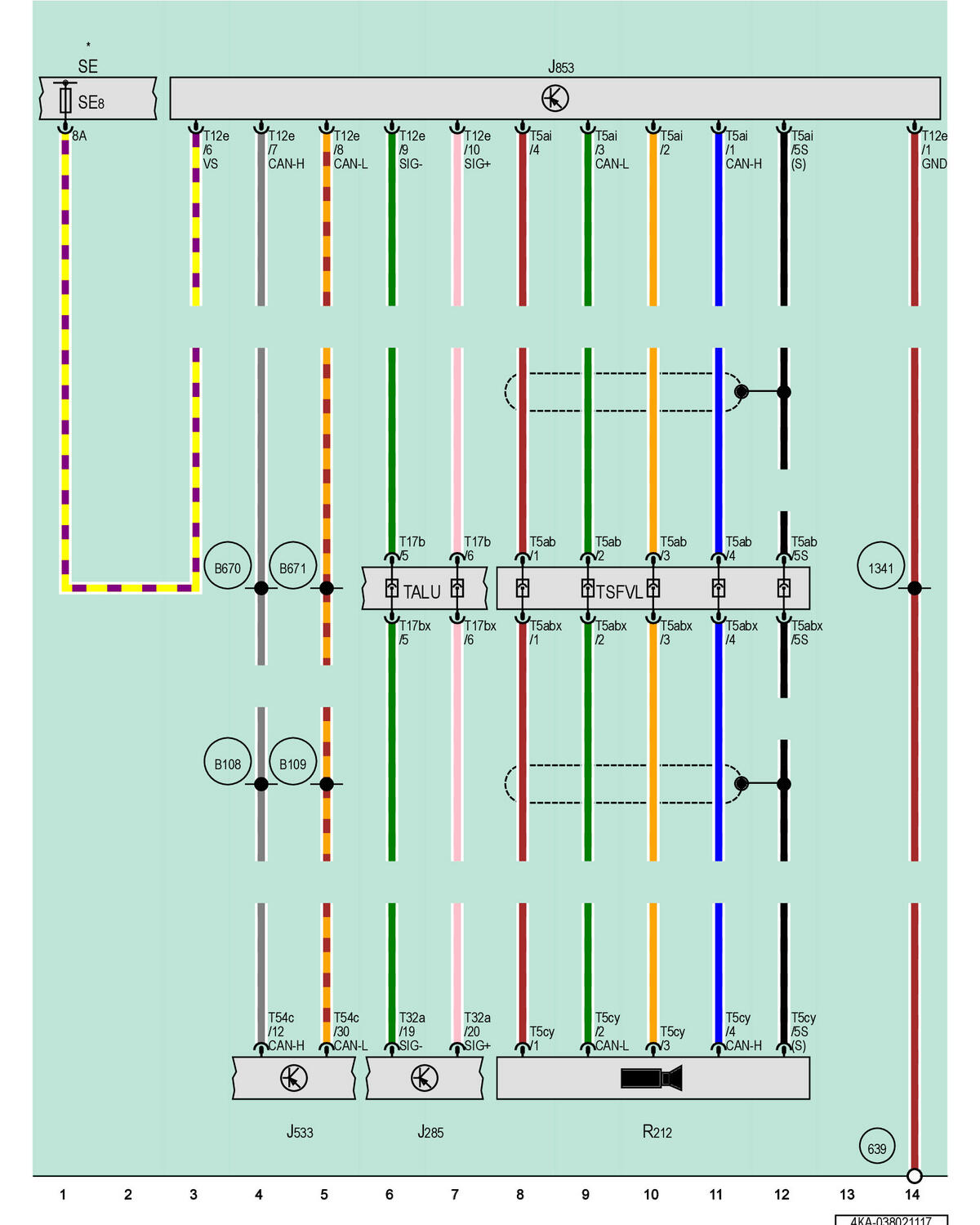

Night Vision System Control Module, Night Vision System Camera

Courtesy of AUDI OF AMERICA, LLC

J285

Instrument Cluster Control Module

J533

Data Bus on Board Diagnostic Interface

J853

Night Vision System Control Module

R212

Night Vision System Camera

SE

Fuse Panel E

SE8

Fuse 8 on Fuse Panel E

T5ab

5-Pin Connector, Black

T5abx

5-Pin Connector, Black

T5ai

5-Pin Connector, Black

T5cy

5-Pin Connector, Black

T12e

12-Pin Connector, Black

T17b

17-Pin Connector, Blue

T17bx

17-Pin Connector, Blue

T32a

32-Pin Connector, Gray

T54c

54-Pin Connector, Black

TALU

Coupling Point on Left A-Pillar, Bottom

TSFVL

Coupling Point on Left Front Bumper

639

Ground Connection on Left A-Pillar

1341

Ground Connection 43 (in Main Wiring Harness)

B108

CAN Bus Extended High Connection 1 (in Main Wiring Harness)

B109

CAN Bus Extended Low Connection 1 (in Main Wiring Harness)

B670

CAN Bus Extended High Connection 3 (in Main Wiring Harness)

B671

CAN Bus Extended Low Connection 3 (in Main Wiring Harness)

*

Refer to Applicable Wiring Diagram for Fuse Positions
