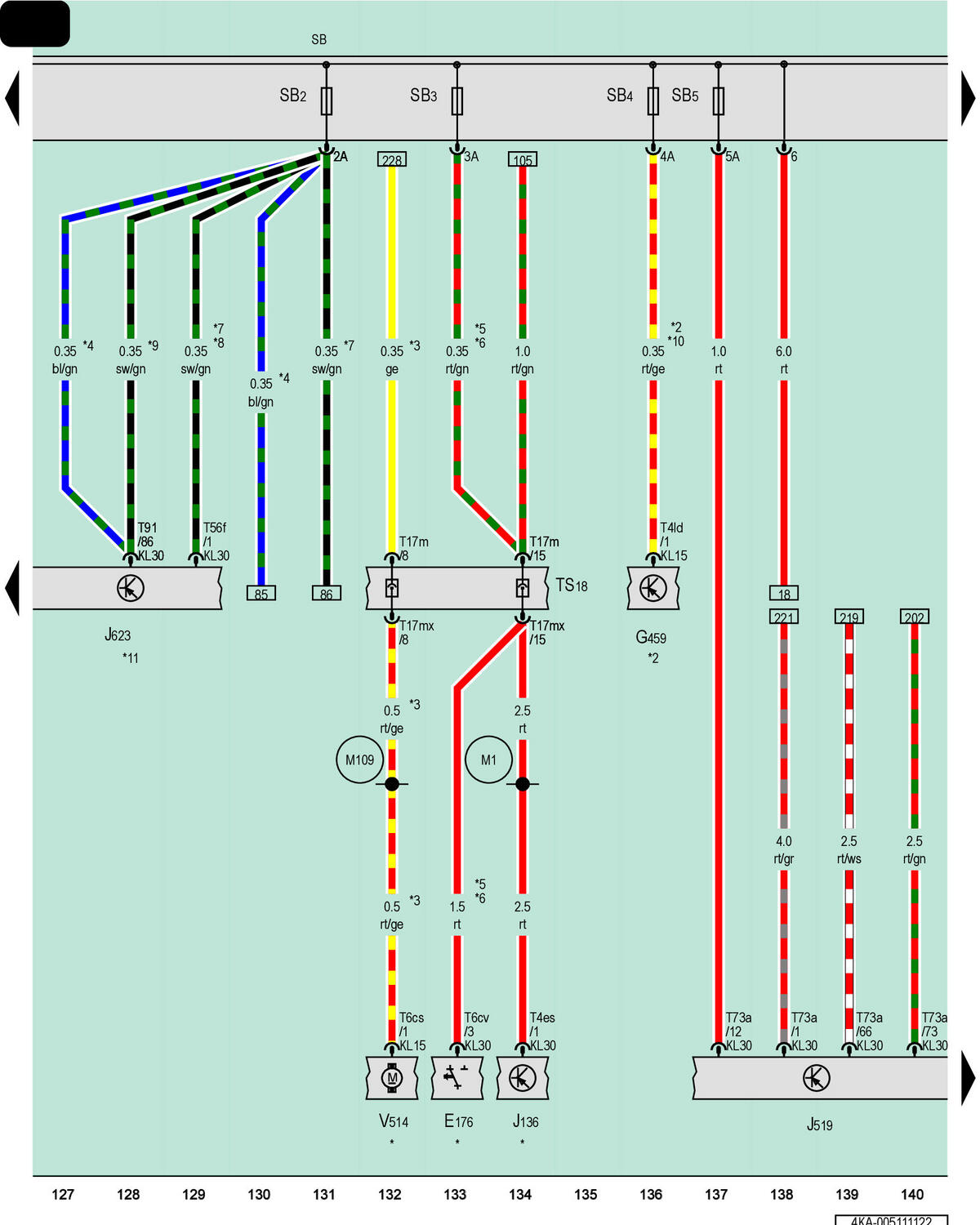

VEHICLE ELECTRICAL SYSTEM CONTROL MODULE, FUSE PANEL B (1 Of 2)
E176
Driver Seat Lumbar Support Adjustment Switch
G459
Toll Registration Sensor
J136
Memory Seat/Steering Column Adjustment Control Module
J519
Vehicle Electrical System Control Module
J623
Engine/Motor Control Module
SB
Fuse Panel B
SB2
Fuse 2 (On Fuse Panel B)
SB3
Fuse 3 (On Fuse Panel B)
SB4
Fuse 4 (On Fuse Panel B)
SB5
Fuse 5 (On Fuse Panel B)
T4es
4-Pin Connector, Black
T4ld
4-Pin Connector, Blue
T6cs
6-Pin Connector, Black
T6cv
6-Pin Connector, Black
T17m
17-Pin Connector, Red
T17mx
17-Pin Connector, Red
T56f
56-Pin Connector, Black
T73a
73-Pin Connector, Black, Naturally Cloudy
TS18
Driver Seat Coupling Point
T91
91-Pin Connector, Black
V514
Left Front Seat Cushion Fan 1
M1
Positive Connection 1 (30) (in Seat Adjustment Wiring Harness)
M109
Connection 1 (30) (in Left Front Wiring Harness)
*
Refer to Applicable Wiring Diagram for the Driver Seat
*2
Optional Equipment
*3
For Vehicles with Seat Ventilation
*4
For Vehicles with Diesel Engine
*5
For Vehicles with Lumbar Support Adjustment
*6
For Vehicles Without a Power Driver Seat
*7
For Vehicles with Gasoline Engine
*8
For Vehicles with 48 V System
*9
For Vehicles with 2.0L Gasoline Engine
*10
Country-Specific
*11
Refer to Applicable Engine Wiring Diagram
