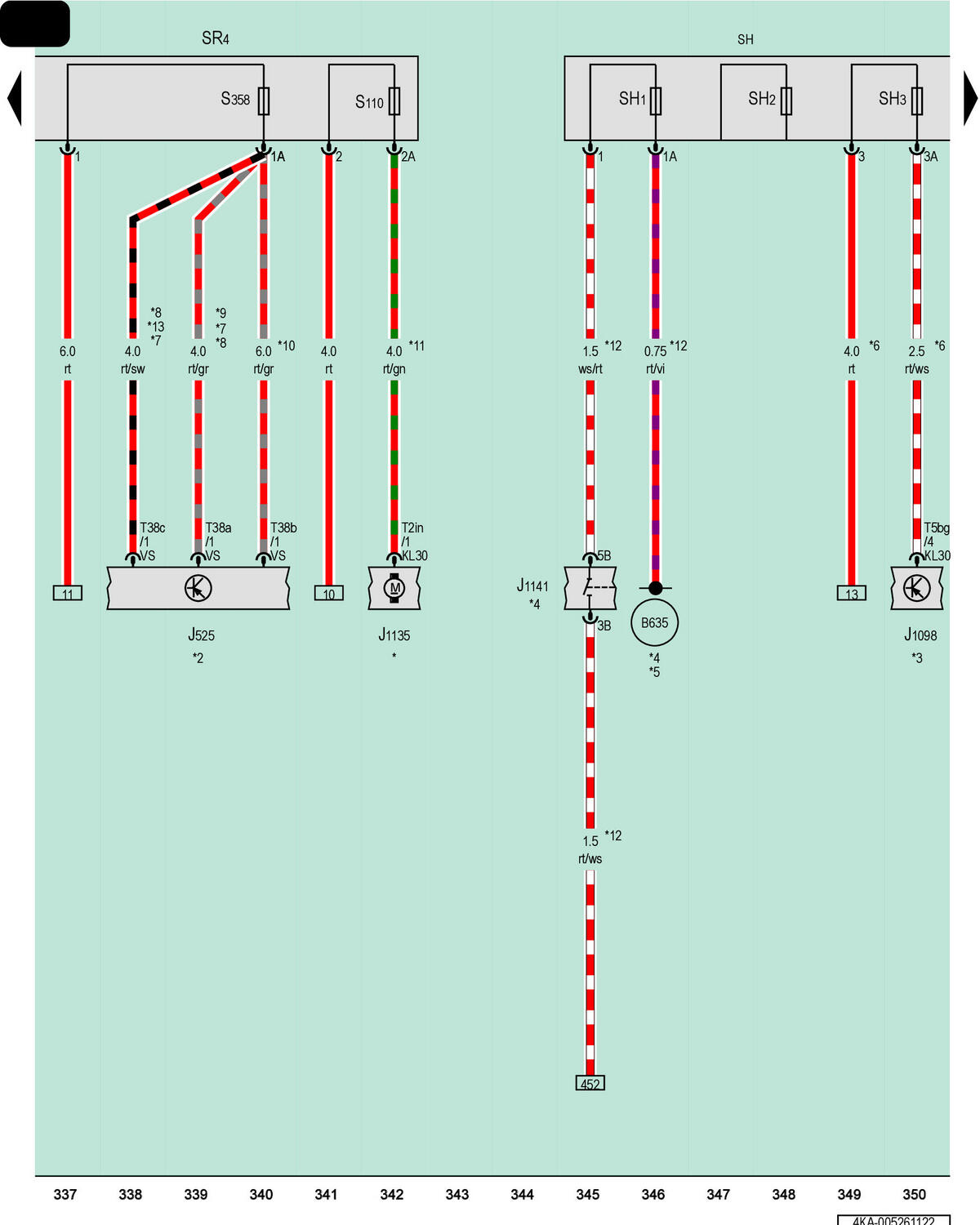

Thermal Management Coolant Pump Relay, Fuse Panel H, Self-Leveling Suspension Fuse
J525
Digital Sound System Control Module
J1098
Right Rear Seat Belt Tensioner Control Module
J1135
Level Control System Compressor Electronics
J1141
Thermal Management Coolant Pump Relay
SH
Fuse Panel H
SH1
Fuse 1 on Fuse Panel H
SH2
Fuse 2 on Fuse Panel H
SH3
Fuse 3 on Fuse Panel H
SR4
Relay and Fuse Panel 4
S110
Self-Leveling Suspension Fuse
S358
Digital Sound System Fuse
T2in
2-Pin Connector, Brown
T5bg
5-Pin Connector, Naturally Cloudy
T38a
38-Pin Connector, Black
T38b
38-Pin Connector, Black
T38c
38-Pin Connector, Black
B635
Positive Connection 3 (87) (in Main Wiring Harness)
*
Refer to Applicable Wiring Diagram for the Self-Leveling System
*2
Refer to Applicable Sound System Wiring Diagram
*3
Refer to Applicable Airbag Wiring Diagram
*4
Refer to Applicable Thermo Management Wiring Diagram
*5
Refer to Applicable High-Voltage System Wiring Diagram
*6
For Vehicles with Reversible Seat Belt Tensioners
*7
For Vehicles with Standard Sound System
*8
For Vehicles with Bose Sound System
*9
Omitted as a Running Change
*10
For Vehicles with Bang & Olufsen Sound System
*11
For Vehicles with Level Control System
*12
For Vehicles with Hybrid Drive
*13
Running Change
