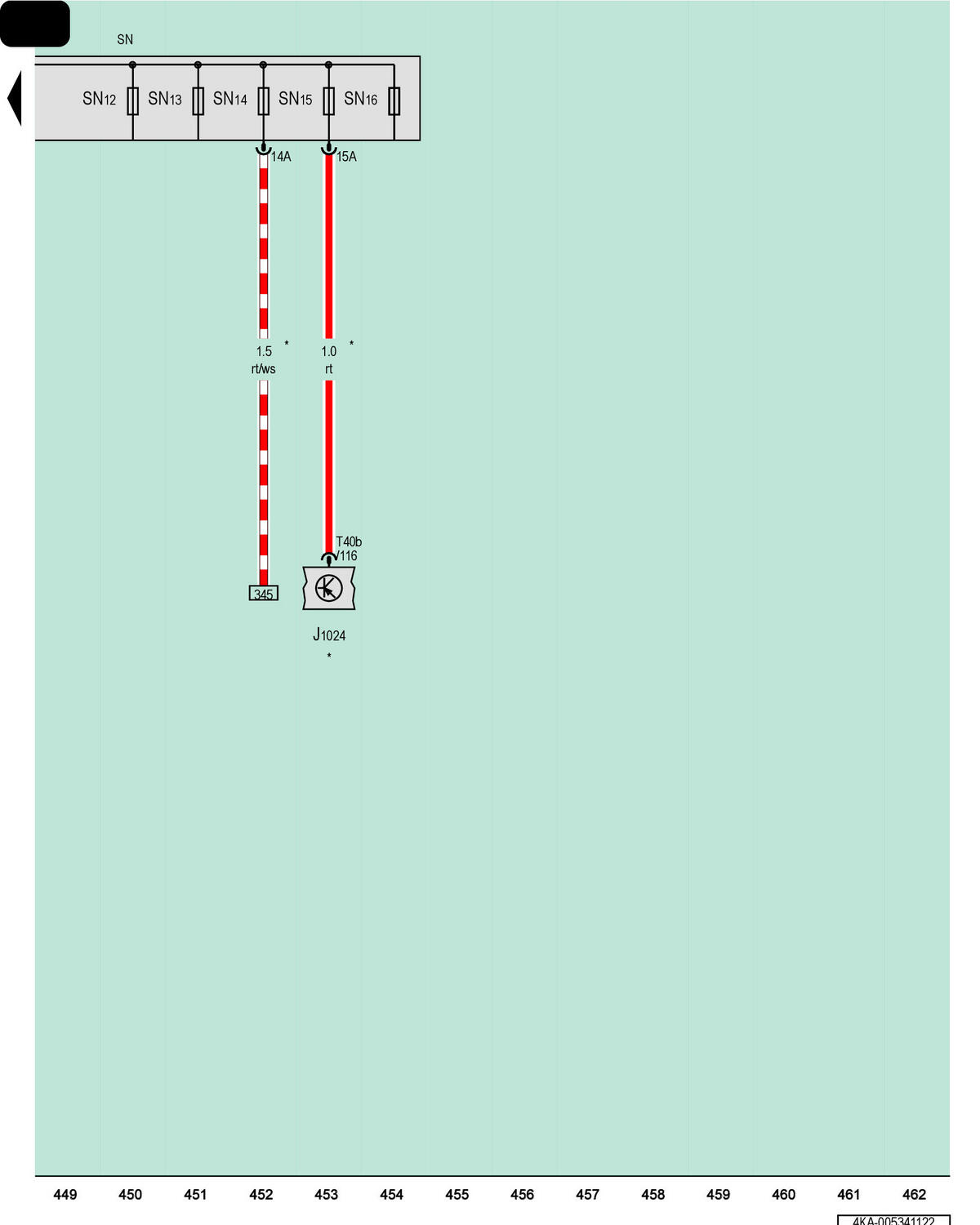

Thermal Management Control Module, Fuse Panel N

Courtesy of AUDI OF AMERICA, LLC

J1024

Thermal Management Control Module

Fuse Panel N

SN12

Fuse 12 on Fuse Panel N

SN13

Fuse 13 on Fuse Panel N

SN14

Fuse 14 on Fuse Panel N

SN15

Fuse 15 on Fuse Panel N

SN16

Fuse 16 on Fuse Panel N

T40b

40-Pin Connector, Black

For Vehicles with Hybrid Drive
