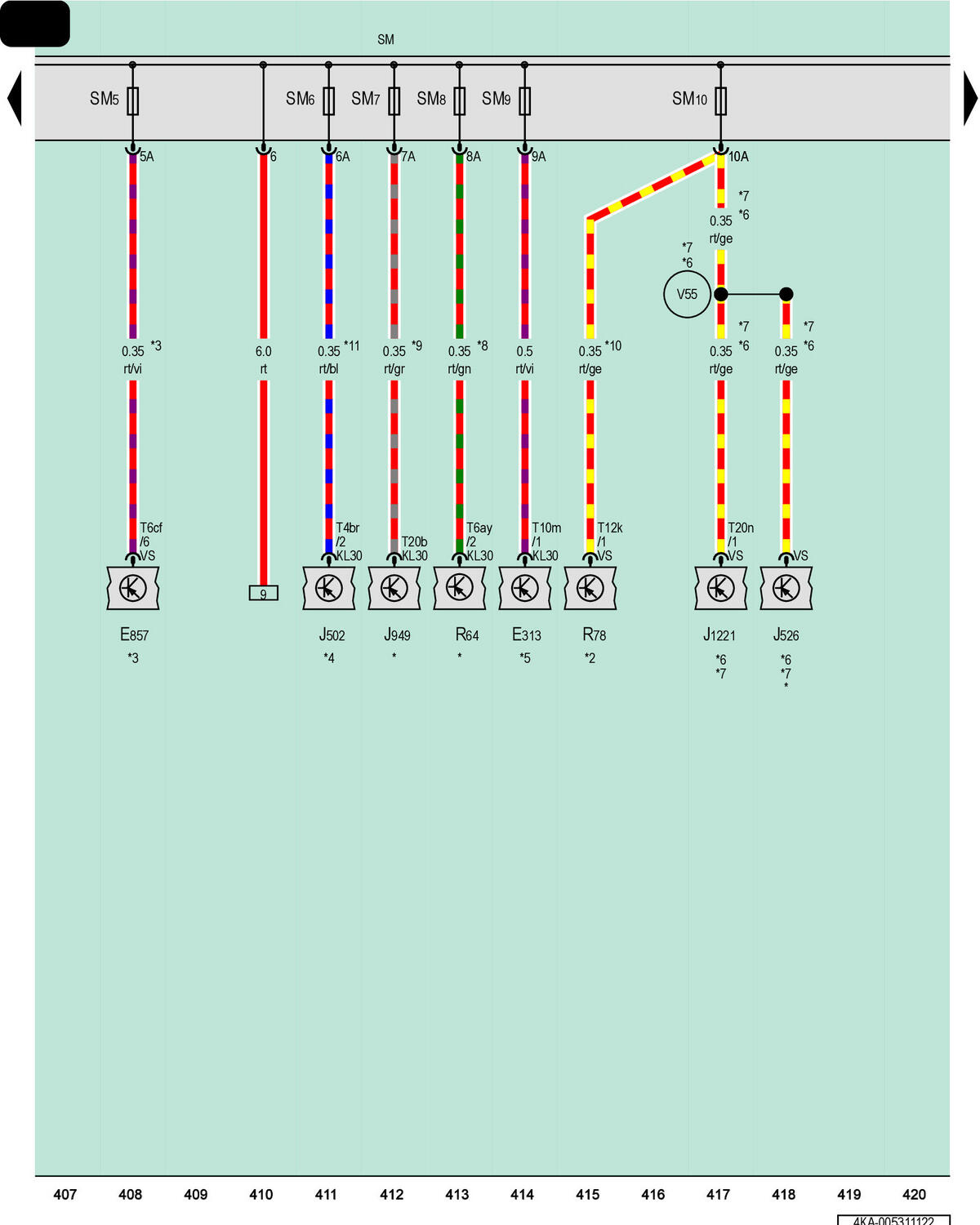

Telephone/Telematics Control Module, Telematics Interface Control Module, Fuse Panel M
E313
Selector Lever
E857
Auxiliary Display Control Head 1
J502
Tire Pressure Monitoring Control Module
J526
Telephone/Telematics Control Module
J949
Control Module for Emergency Call Module and Communication Unit
J1221
Telematics Interface Control Module
R64
Parking Heater Radio Receiver
R78
TV Tuner
SM
Fuse Panel M
SM5
Fuse 5 on Fuse Panel M
SM6
Fuse 6 on Fuse Panel M
SM7
Fuse 7 on Fuse Panel M
SM8
Fuse 8 on Fuse Panel M
SM9
Fuse 9 on Fuse Panel M
SM10
Fuse 10 on Fuse Panel M
T4br
4-Pin Connector, Gray
T6ay
6-Pin Connector, Blue
T6cf
6-Pin Connector, Black
T10m
10-Pin Connector, Black
T12k
12-Pin Connector, Black
T20b
20-Pin Connector, Black
T20n
20-Pin Connector, Brown
V55
Telephone Connection 2 (in Main Wiring Harness)
*
Refer to Applicable Wiring Diagram
*2
Refer to the Applicable TV Tuner Wiring Diagram
*3
Optional Equipment
*4
Refer to Applicable Wiring Diagram for the Tire Pressure Monitoring System
*5
Refer to Applicable Wiring Diagram for Automatic Transmission
*6
For Vehicles with Hybrid Drive
*7
For Vehicles with China Equipment
*8
For Vehicles with Parking Heater Radio Receiver
*9
For Vehicles with Emergency Call Module
*10
For Vehicles with TV Tuner
*11
For Vehicles with Tire Pressure Monitoring
