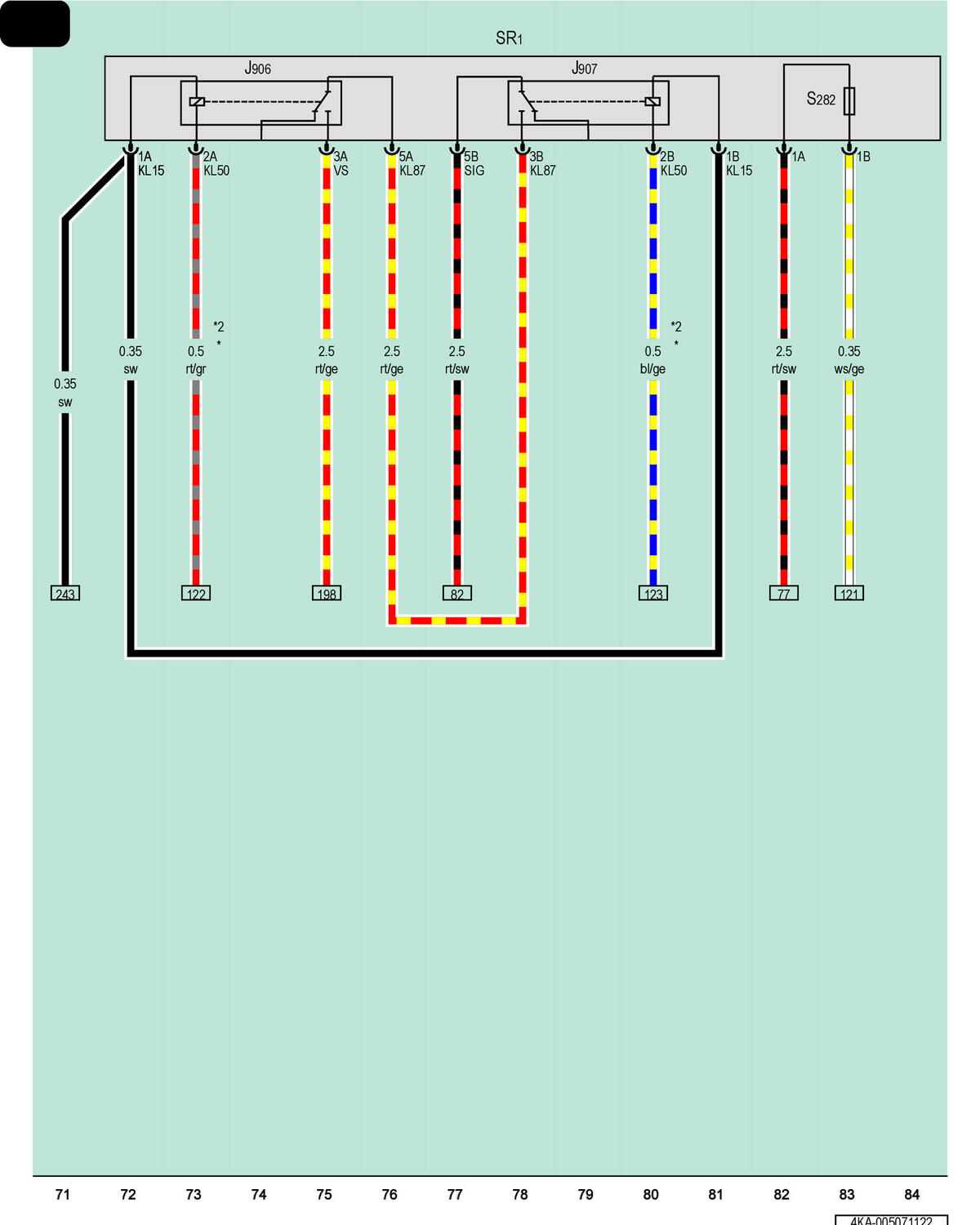

Starter Relay 1, Starter Relay 2, Relay And Fuse Panel 1

Courtesy of AUDI OF AMERICA, LLC

J906

Starter Relay 1

J907

Starter Relay 2

SR1

Relay and Fuse Panel 1

S282

Engine Electronics Fuse

*

Diameter Depends on Equipment

*2

The Color of the Wires Depends on Vehicle Equipment
