Fuse Panel E

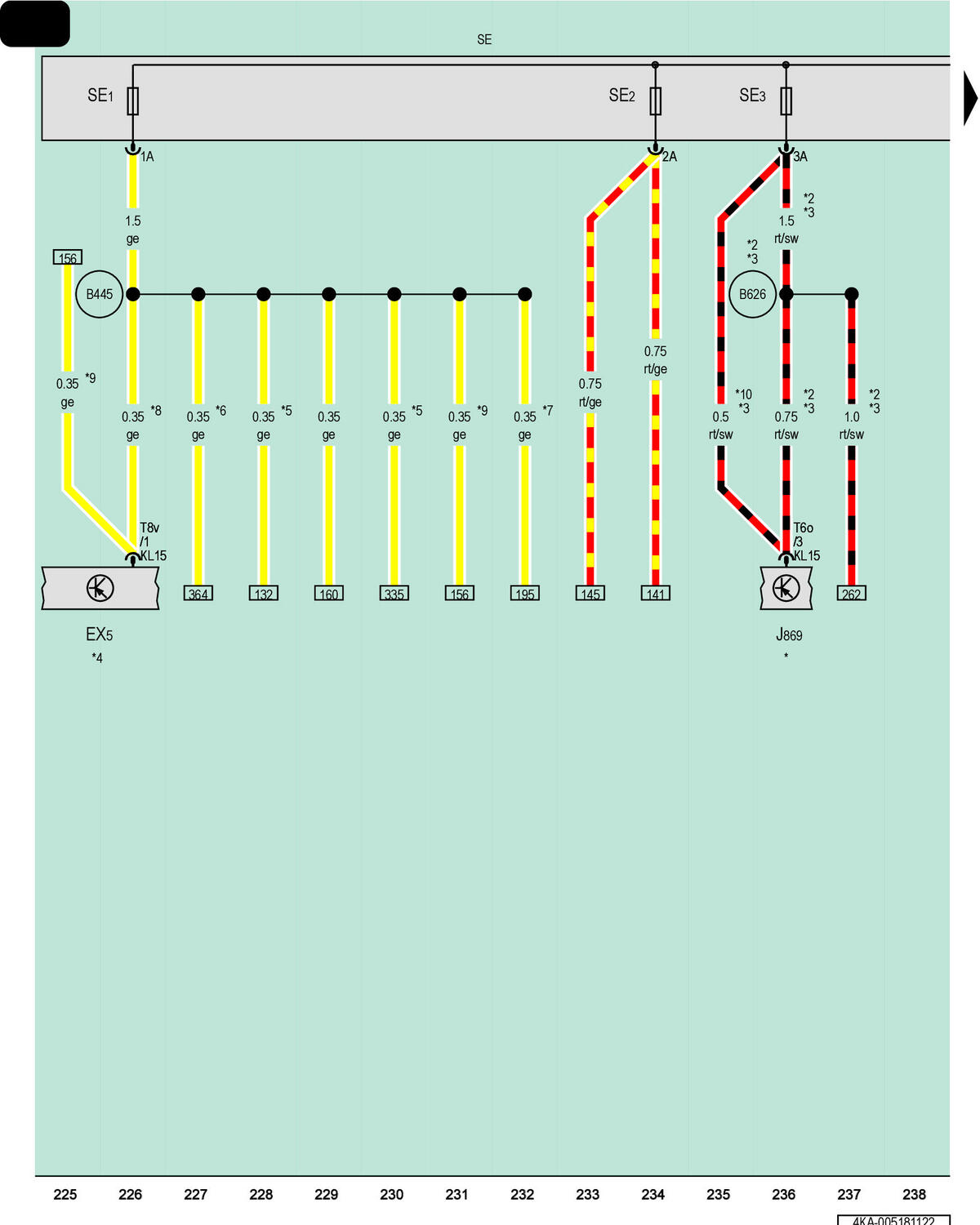

GWW4KA-005181122Courtesy of AUDI OF AMERICA, LLC

EX5

Interior Rearview Mirror

J869

Structure-Borne Sound Control Module

SE

Fuse Panel E

SE1

Fuse 1 on Fuse Panel E

SE2

Fuse 2 on Fuse Panel E

SE3

Fuse 3 on Fuse Panel E

T6o

6-Pin Connector, Black

T8v

8-Pin Connector, Black

B445

OBD Connection 2 (in Main Wiring Harness)

B626

Positive Connection 2 (15) (in Main Wiring Harness)

*

Refer to Applicable Engine Wiring Diagram

*2

For Vehicles with Diesel Engine

*3

For Vehicles with 48 V System

*4

Refer to Applicable Wiring Diagram

*5

For Vehicles with Seat Ventilation

*6

Depending on Equipment

*7

Optional Equipment

*8

For Vehicles with Automatic Dimming Interior Rearview Mirror

*9

For Vehicles with Driver Assistance Systems Front Camera

*10

For Vehicles with Gasoline Engine

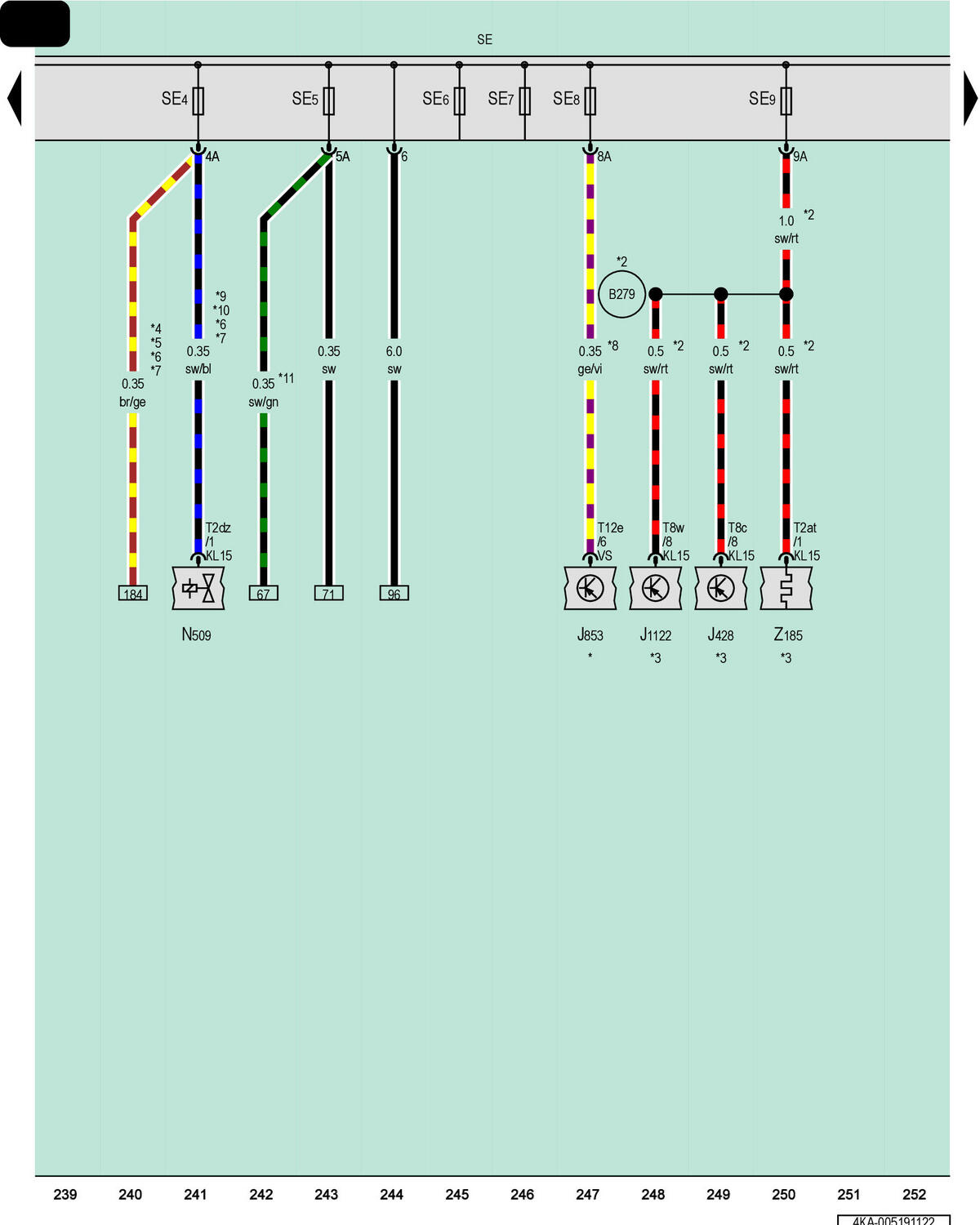

GWW4KA-005191122Courtesy of AUDI OF AMERICA, LLC

J428

Control Module for Adaptive Cruise Control

J853

Night Vision System Control Module

J1122

Laser Distance Regulation Control Module

N509

Transmission Fluid Cooling Valve

SE

Fuse Panel E

SE4

Fuse 4 on Fuse Panel E

SE5

Fuse 5 on Fuse Panel E

SE6

Fuse 6 on Fuse Panel E

SE7

Fuse 7 on Fuse Panel E

SE8

Fuse 8 on Fuse Panel E

SE9

Fuse 9 on Fuse Panel E

T2at

2-Pin Connector, Black

T2dz

2-Pin Connector, Black

T8c

8-Pin Connector, Black

T8w

8-Pin Connector, Black

T12e

12-Pin Connector, Black

Z185

Heating Element for Adaptive Cruise Control Radar Sensor

B279

Positive Connection 3 (15a) (in Main Wiring Harness)

*

Refer to Applicable Wiring Diagram

*2

For Vehicles with Adaptive Cruise Control (ACC)

*3

Refer to Applicable Wiring Diagram for Adaptive Cruise Control

*4

For Vehicles with a 8-Cylinder Engine

*5

For Vehicles with 48 V System

*6

For Vehicles with 8-Speed Automatic Transmission

*7

For AWD Vehicles

*8

For Vehicles with Night Vision System

*9

For Vehicles with a 4-Cylinder Engine

*10

For Vehicles with a 6-Cylinder Engine

*11

For Vehicles with Hybrid Drive
