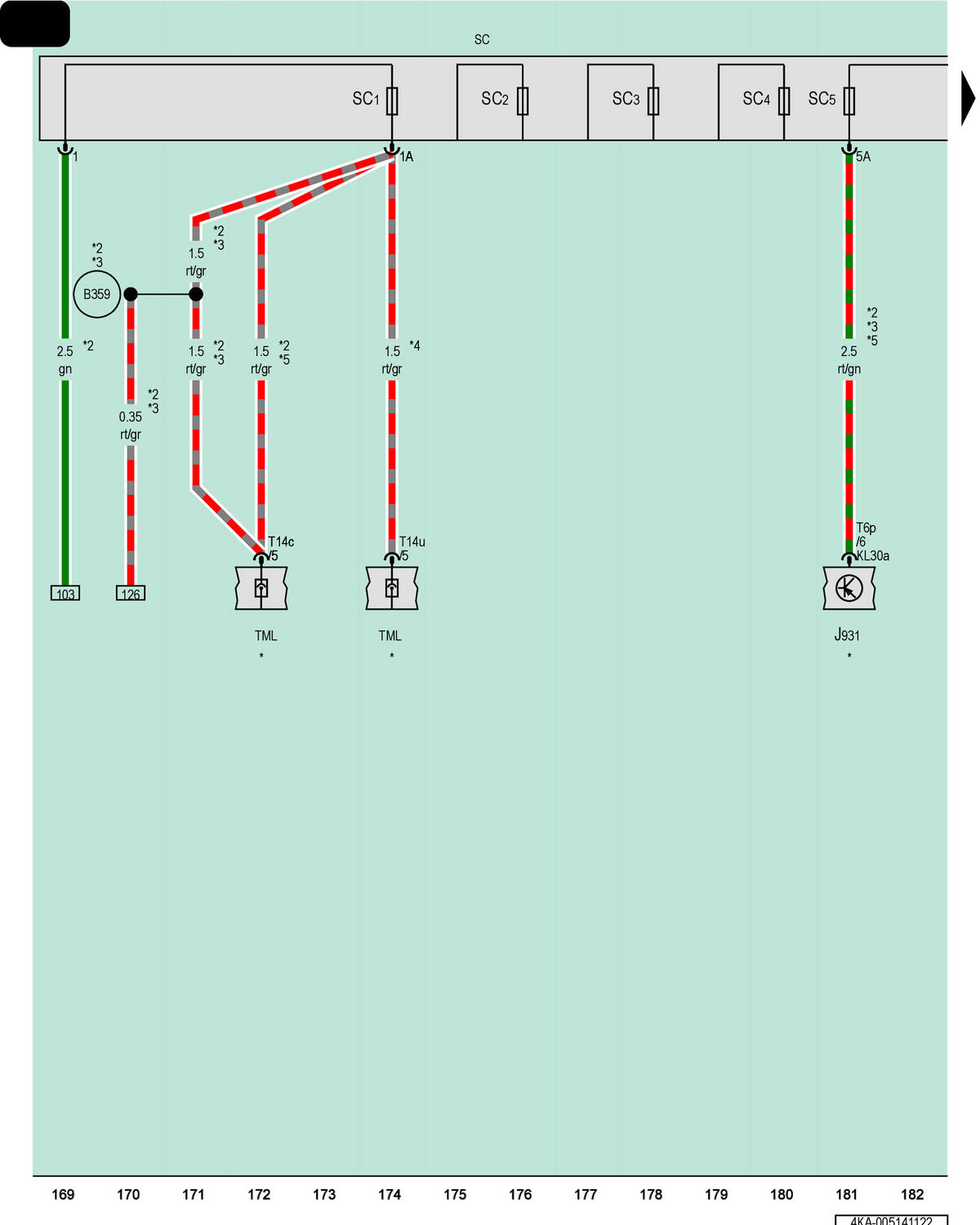

Fuse Panel C

Courtesy of AUDI OF AMERICA, LLC

J931

Assembly Mount Control Module

Fuse Panel C

SC1

Fuse 1 (On Fuse Panel C)

SC2

Fuse 2 (On Fuse Panel C)

SC3

Fuse 3 (On Fuse Panel C)

SC4

Fuse 4 (On Fuse Panel C)

SC5

Fuse 5 (On Fuse Panel C)

T6p

6-Pin Connector, Black

T14c

14-Pin Connector, Black

T14u

14-Pin Connector, Black

TML

Coupling Point in Engine/Motor Compartment, Left

B359

Positive Connection 10 (87a) (in Main Wiring Harness)

Refer to Applicable Engine Wiring Diagram

For Vehicles with Gasoline Engine

For Vehicles with a 8-Cylinder Engine

For Vehicles with 2.0L Gasoline Engine

For Vehicles with 48 V System
