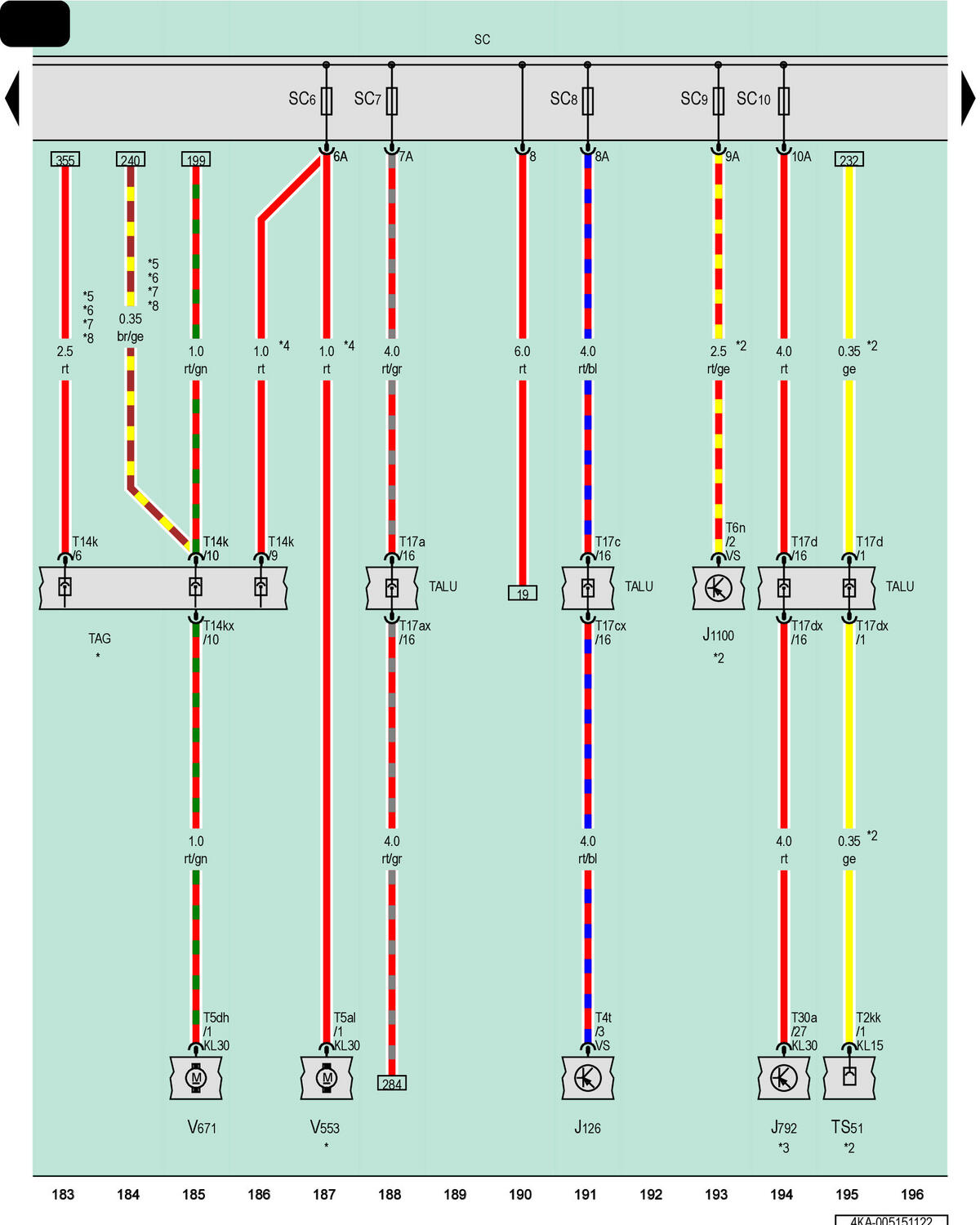

Fuse Panel C, Transmission Electric Pump 3
J126
Fresh Air Blower Control Module
J792
Active Steering Control Module
J1100
Windshield Washer Pump Control Module
SC
Fuse Panel C
SC6
Fuse 6 (On Fuse Panel C)
SC7
Fuse 7 (On Fuse Panel C)
SC8
Fuse 8 (On Fuse Panel C)
SC9
Fuse 9 (On Fuse Panel C)
SC10
Fuse 10 (On Fuse Panel C)
T2kk
2-Pin Connector, Black
T4t
4-Pin Connector, Black
T5al
5-Pin Connector, Black
T5dh
5-Pin Connector, Brown
T6n
6-Pin Connector, Black
T14k
14-Pin Connector, Black
T14kx
14-Pin Connector, Black
T17a
17-Pin Connector, White
T17ax
17-Pin Connector, White
T17c
17-Pin Connector, Red
T17cx
17-Pin Connector, Red
T17d
17-Pin Connector, Green
T17dx
17-Pin Connector, Green
T30a
30-Pin Connector, Black
TAG
Automatic Transmission Coupling Point
TALU
Coupling Point on Left A-Pillar, Bottom
TS51
Toll Registration Sensor Coupling Point, Behind the Glove Compartment
V553
Transmission Electric Pump 2
V671
Transmission Electric Pump 3
*
Refer to Applicable Wiring Diagram for Automatic Transmission
*2
Optional Equipment
*3
Refer to Applicable Wiring Diagram
*4
Depending on Equipment
*5
For Vehicles with a 8-Cylinder Engine
*6
For Vehicles with 48 V System
*7
For Vehicles with 8-Speed Automatic Transmission
*8
For AWD Vehicles
