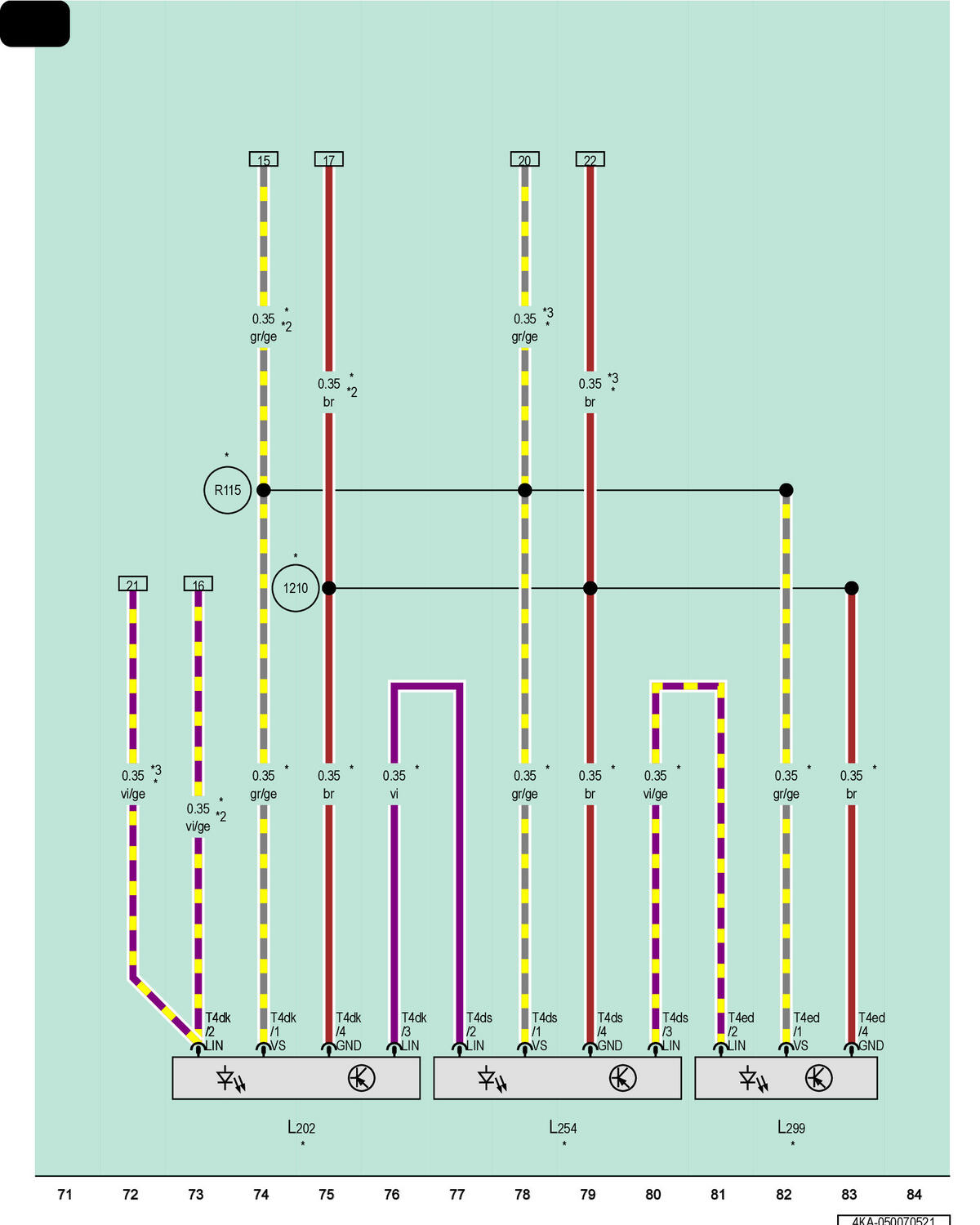

Right Rear Door Ambient Lighting Bulb 1, Right Rear Door Contour Illumination Lamp, Right Rear Door Contour Illumination Lamp 2

Courtesy of AUDI OF AMERICA, LLC

L202

Right Rear Door Ambient Lighting Bulb 1

L254

Right Rear Door Contour Illumination Lamp

L299

Right Rear Door Contour Illumination Lamp 2

T4dk

4-Pin Connector, Black

T4ds

4-Pin Connector, Brown

T4ed

4-Pin Connector, Red

1210

Ground Connection (in Passenger Side Rear Door Wiring Harness)

R115

Ambient Lighting Connection (in Right Rear Door Wiring Harness)

*

For Vehicles with Ambient Lighting

*2

Through July 2018

*3

From July 2018
