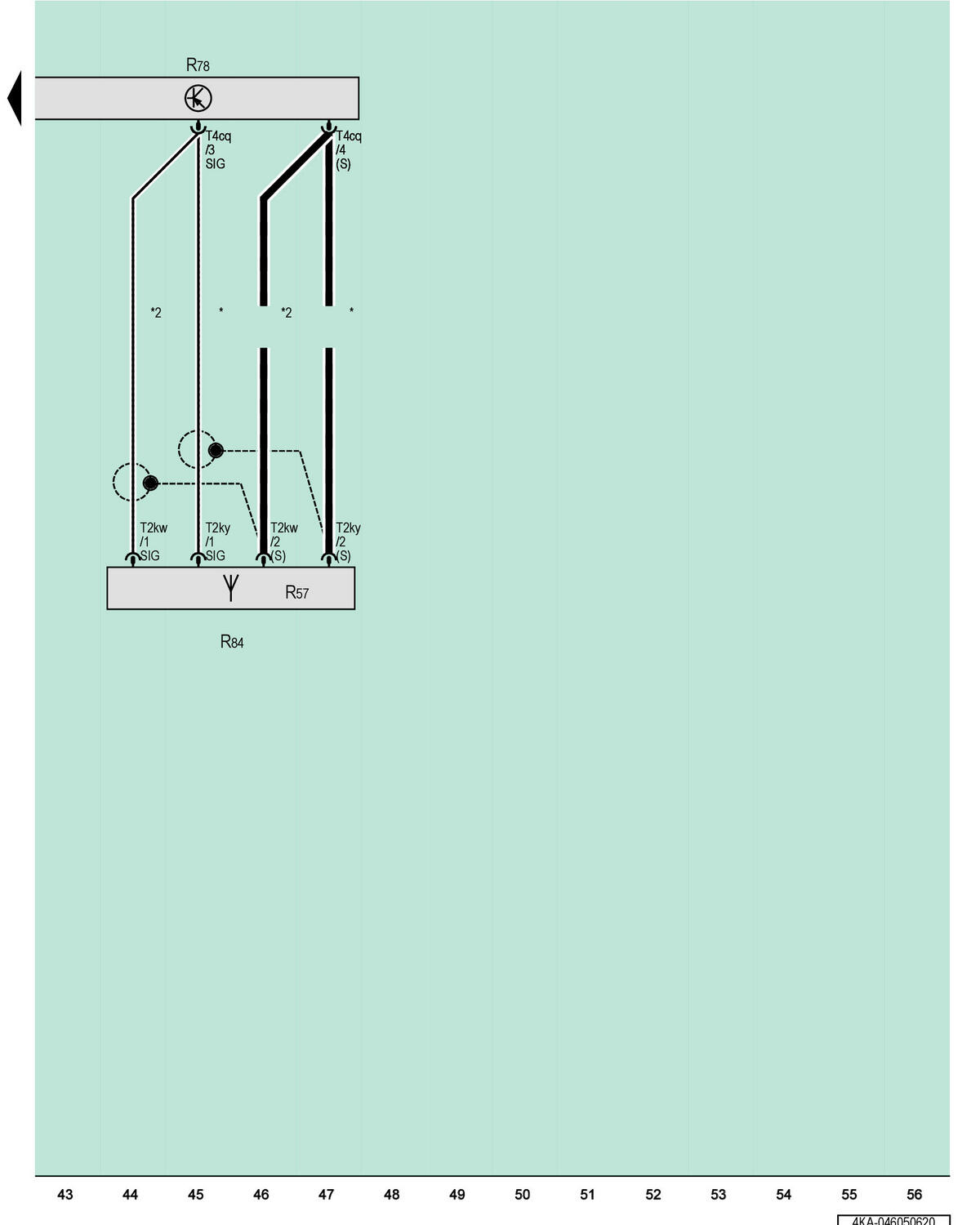

TV Tuner, TV Antenna Amplifier 3

Courtesy of AUDI OF AMERICA, LLC

R57

TV Antenna 3

R78

TV Tuner

R84

TV Antenna Amplifier 3

T2kw

2-Pin Connector, Green

T2ky

2-Pin Connector, Brown

T4cq

4-Pin Connector, Green

*

For Vehicles with Japan Equipment

*2

For Vehicles Without Japan Equipment
