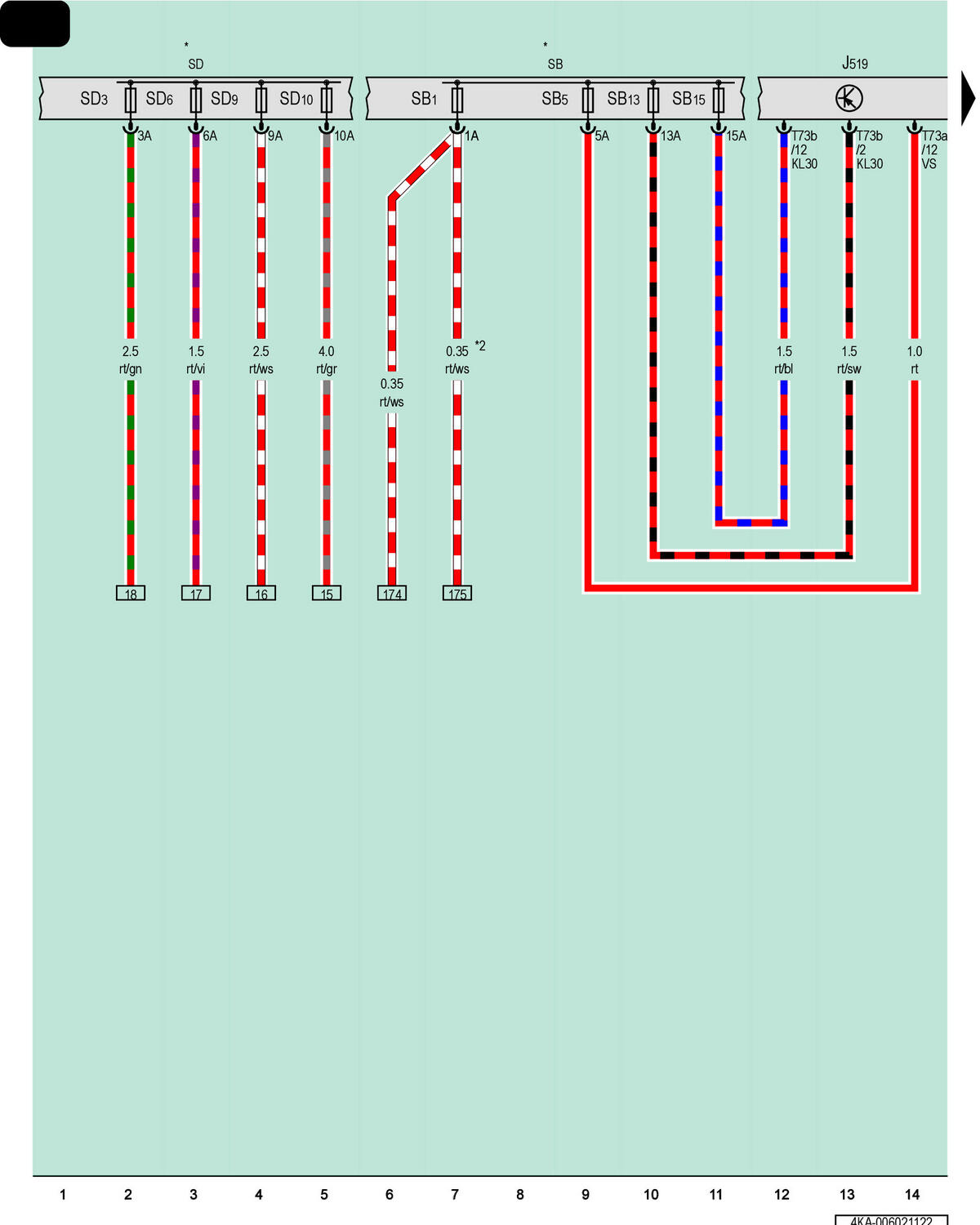

Vehicle Electrical System Control Module

Courtesy of AUDI OF AMERICA, LLC

J519

Fuse Panel B

SB1

Fuse 1 (On Fuse Panel B)

Fuse Panel D

SD3

Fuse 3 (On Fuse Panel D)

SB5

Fuse 5 (On Fuse Panel B)

SD6

Fuse 6 (On Fuse Panel D)

SD9

Fuse 9 (On Fuse Panel D)

SD10

Fuse 10 (On Fuse Panel D)

SB13

Fuse 13 (On Fuse Panel B)

SB15

Fuse 15 (On Fuse Panel B)

T73a

73-Pin Connector, Black, Naturally Cloudy

T73b

73-Pin Connector, Black, Black

Refer to Applicable Wiring Diagram for Fuse Positions

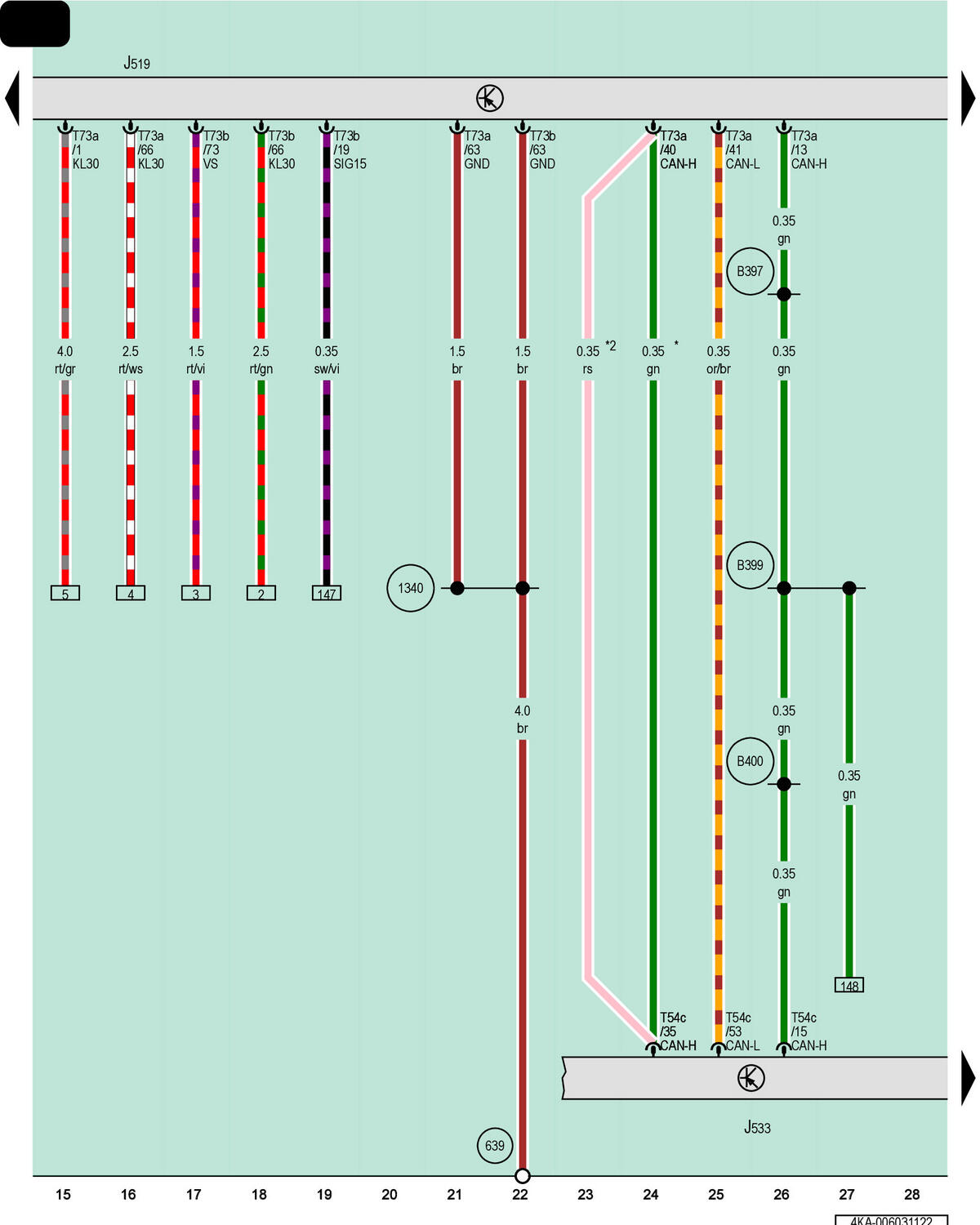

For Vehicles with Anti-Theft Alarm System and Interior Monitoring and Towing Prevention

Courtesy of AUDI OF AMERICA, LLC

J519

Vehicle Electrical System Control Module

J533

Data Bus on Board Diagnostic Interface

T54c

54-Pin Connector, Black

T73a

73-Pin Connector, Black, Naturally Cloudy

T73b

73-Pin Connector, Black, Black

639

Ground Connection on Left A-Pillar

1340

Ground Connection 42 (in Main Wiring Harness)

B397

Comfort System CAN Bus High Connection 1 (in Main Wiring Harness)

B399

Comfort System CAN Bus High Connection 3 (in Main Wiring Harness)

B400

Comfort System CAN Bus High Connection 4 (in Main Wiring Harness)

Omitted as a Running Change

Running Change
