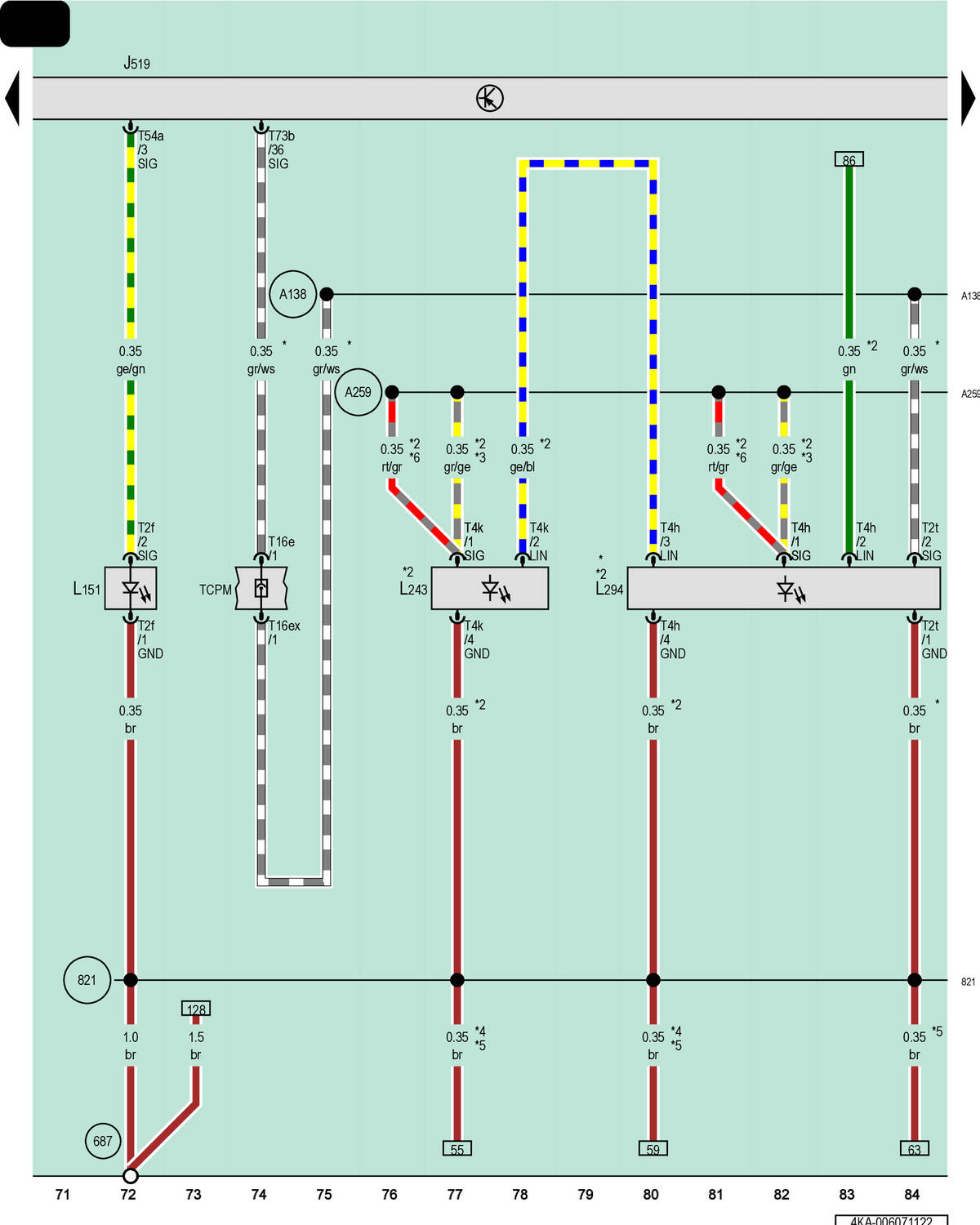

Vehicle Electrical System Control Module, Left Front FOOTWELL Illumination Bulb, Instrument Panel Contour Illumination Lamp 1, Instrument Panel Ambient Lighting Lamp 3

Courtesy of AUDI OF AMERICA, LLC

J519

Vehicle Electrical System Control Module

L151

Left Front Footwell Illumination Bulb

L243

Instrument Panel Contour Illumination Lamp 1

L294

Instrument Panel Ambient Lighting Lamp 3

T2f

2-Pin Connector, White

T2t

2-Pin Connector, White

T4h

4-Pin Connector, Black

T4k

4-Pin Connector, Brown

T16e

16-Pin Connector, Black

T16ex

16-Pin Connector, Black

T54a

54-Pin Connector, Black

T73b

73-Pin Connector, Black, Black

TCPM

Coupling Point on Instrument Panel, Center

687

Ground Connection 1 on Center Tunnel

821

Ground Connection 7 (in Instrument Panel Wiring Harness)

A138

Connection 2 (in Instrument Panel Wiring Harness)

A259

Connection 3 (in Instrument Panel Wiring Harness)

*

For Vehicles with Auxiliary Lamps

*2

For Vehicles with Ambient Lighting

*3

Omitted as a Running Change

*4

For USA Only

*5

From June 2020

*6

Running Change
