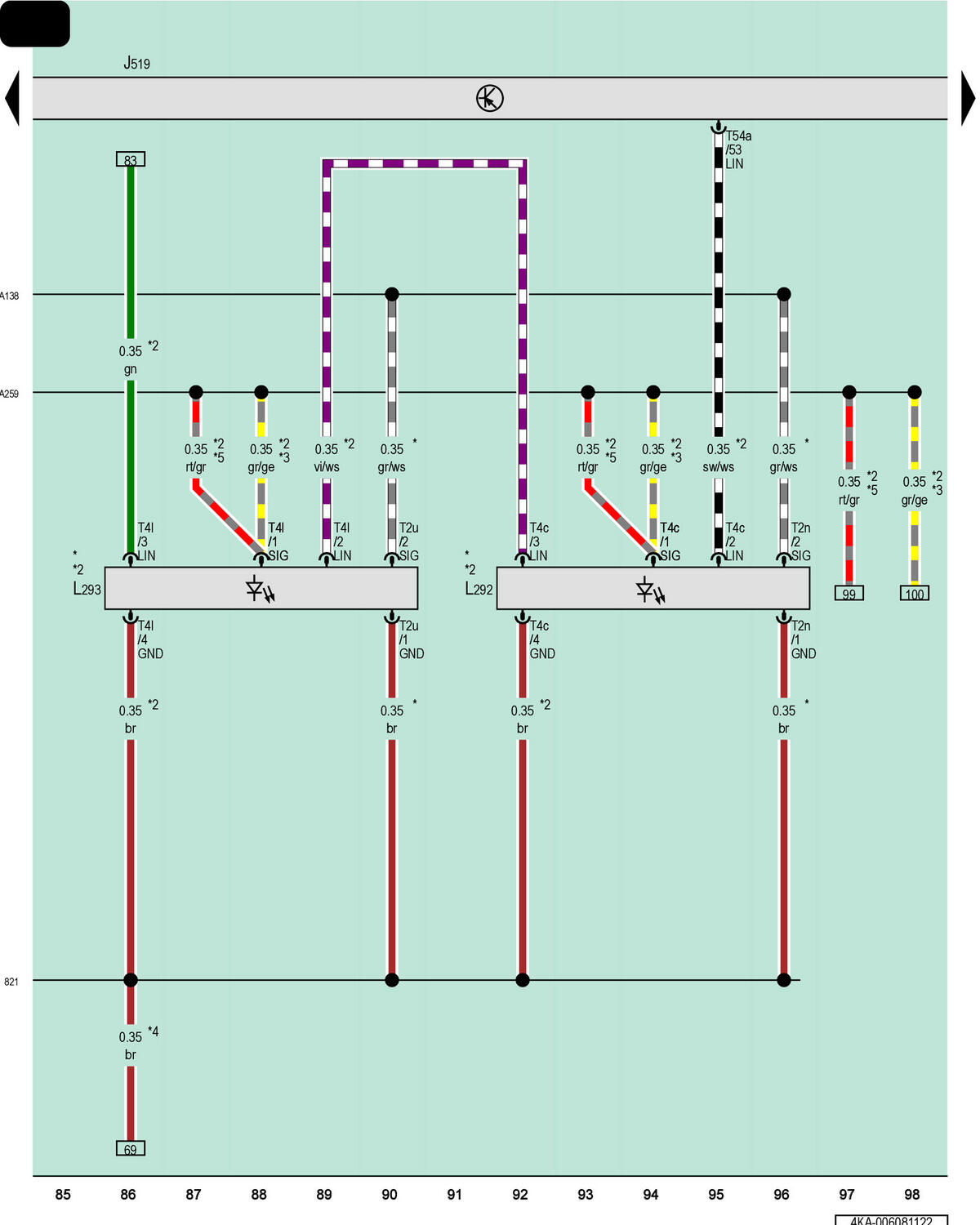

Vehicle Electrical System Control Module, Instrument Panel Ambient Lighting Lamp 1, Instrument Panel Ambient Lighting Lamp 2

Courtesy of AUDI OF AMERICA, LLC

J519

Vehicle Electrical System Control Module

L292

Instrument Panel Ambient Lighting Lamp 1

L293

Instrument Panel Ambient Lighting Lamp 2

T2n

2-Pin Connector, White

T2u

2-Pin Connector, White

T4c

4-Pin Connector, Black

T4l

4-Pin Connector, Black

T54a

54-Pin Connector, Black

821

Ground Connection 7 (in Instrument Panel Wiring Harness)

A138

Connection 2 (in Instrument Panel Wiring Harness)

A259

Connection 3 (in Instrument Panel Wiring Harness)

*

For Vehicles with Auxiliary Lamps

*2

For Vehicles with Ambient Lighting

*3

Omitted as a Running Change

*4

From June 2020

*5

Running Change
