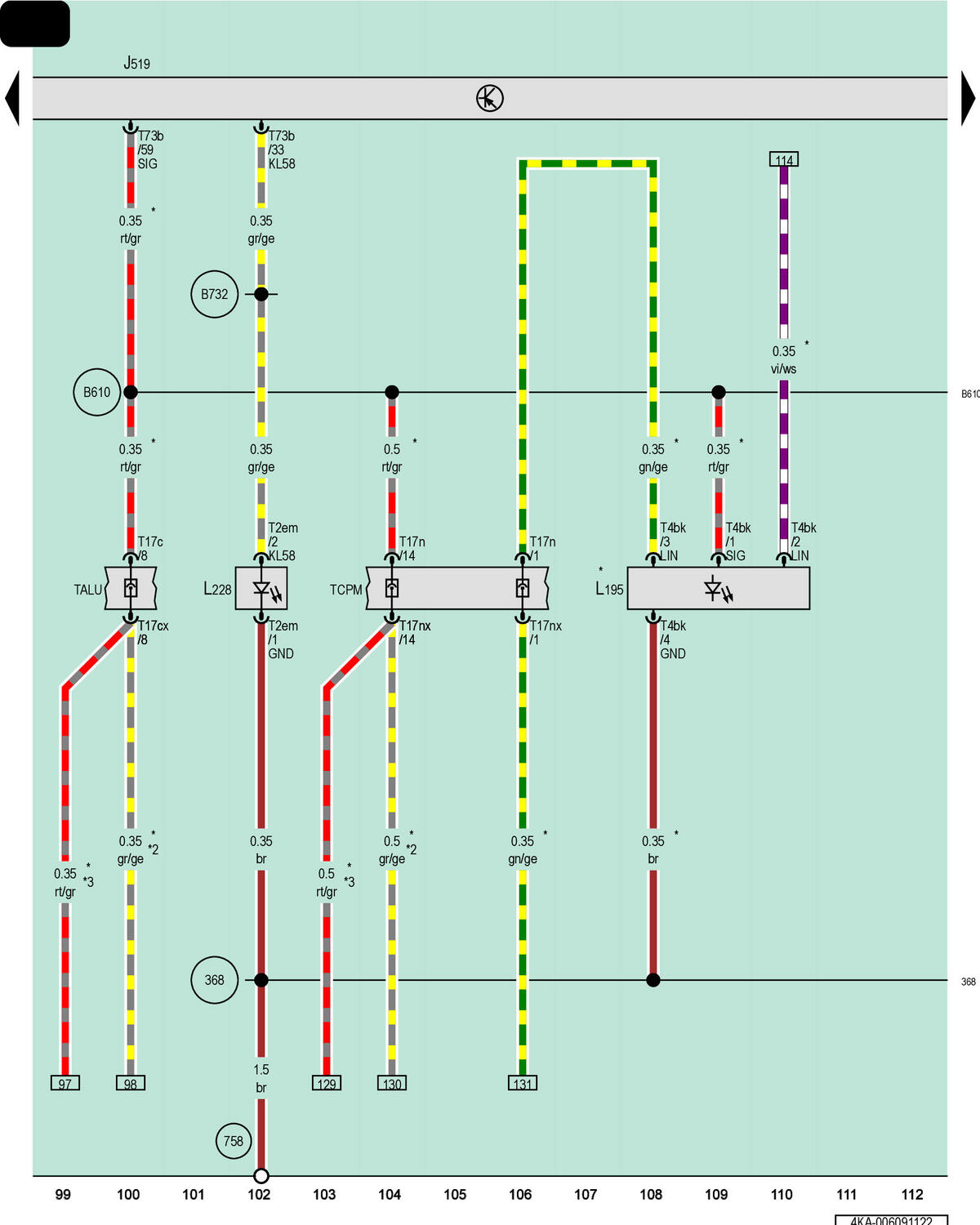

Vehicle Electrical System Control Module, Front Center Console Ambient Lighting Bulb 3, Right Center Armrest Illumination Bulb

Courtesy of AUDI OF AMERICA, LLC

J519

Vehicle Electrical System Control Module

L195

Front Center Console Ambient Lighting Bulb 3

L228

Right Center Armrest Illumination Bulb

T2em

2-Pin Connector, White

T4bk

4-Pin Connector, Brown

T17c

17-Pin Connector, Red

T17cx

17-Pin Connector, Red

T17n

17-Pin Connector, Red

T17nx

17-Pin Connector, Red

T73b

73-Pin Connector, Black, Black

TALU

Coupling Point on Left A-Pillar, Bottom

TCPM

Coupling Point on Instrument Panel, Center

368

Ground Connection 3 (in Main Wiring Harness)

758

Ground Connection 3 on Center Tunnel

B610

Connection 6 (in Interior Wiring Harness)

B732

Connection 58s (in Main Wiring Harness) 2

*

For Vehicles with Ambient Lighting

*2

Omitted as a Running Change

*3

Running Change
