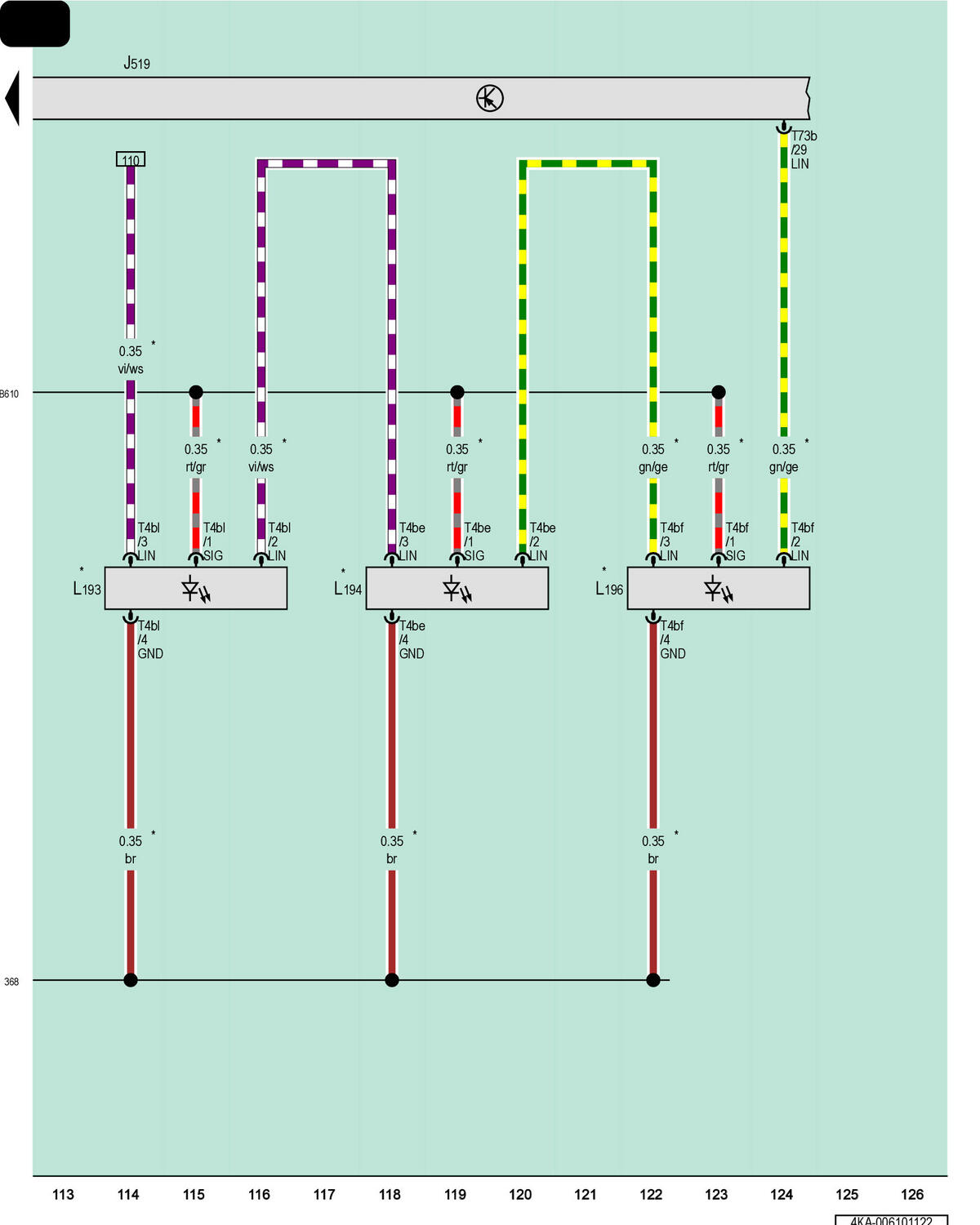

Vehicle Electrical System Control Module, Front Center Console Ambient Lighting Bulb 1, Front Center Console Ambient Lighting Bulb 2, Front Center Console Ambient Lighting Bulb 4

Courtesy of AUDI OF AMERICA, LLC

J519

Vehicle Electrical System Control Module

L193

Front Center Console Ambient Lighting Bulb 1

L194

Front Center Console Ambient Lighting Bulb 2

L196

Front Center Console Ambient Lighting Bulb 4

T4be

4-Pin Connector, Black

T4bf

4-Pin Connector, Brown

T4bl

4-Pin Connector, Black

T73b

73-Pin Connector, Black, Black

368

Ground Connection 3 (in Main Wiring Harness)

B610

Connection 6 (in Interior Wiring Harness)

*

For Vehicles with Ambient Lighting
