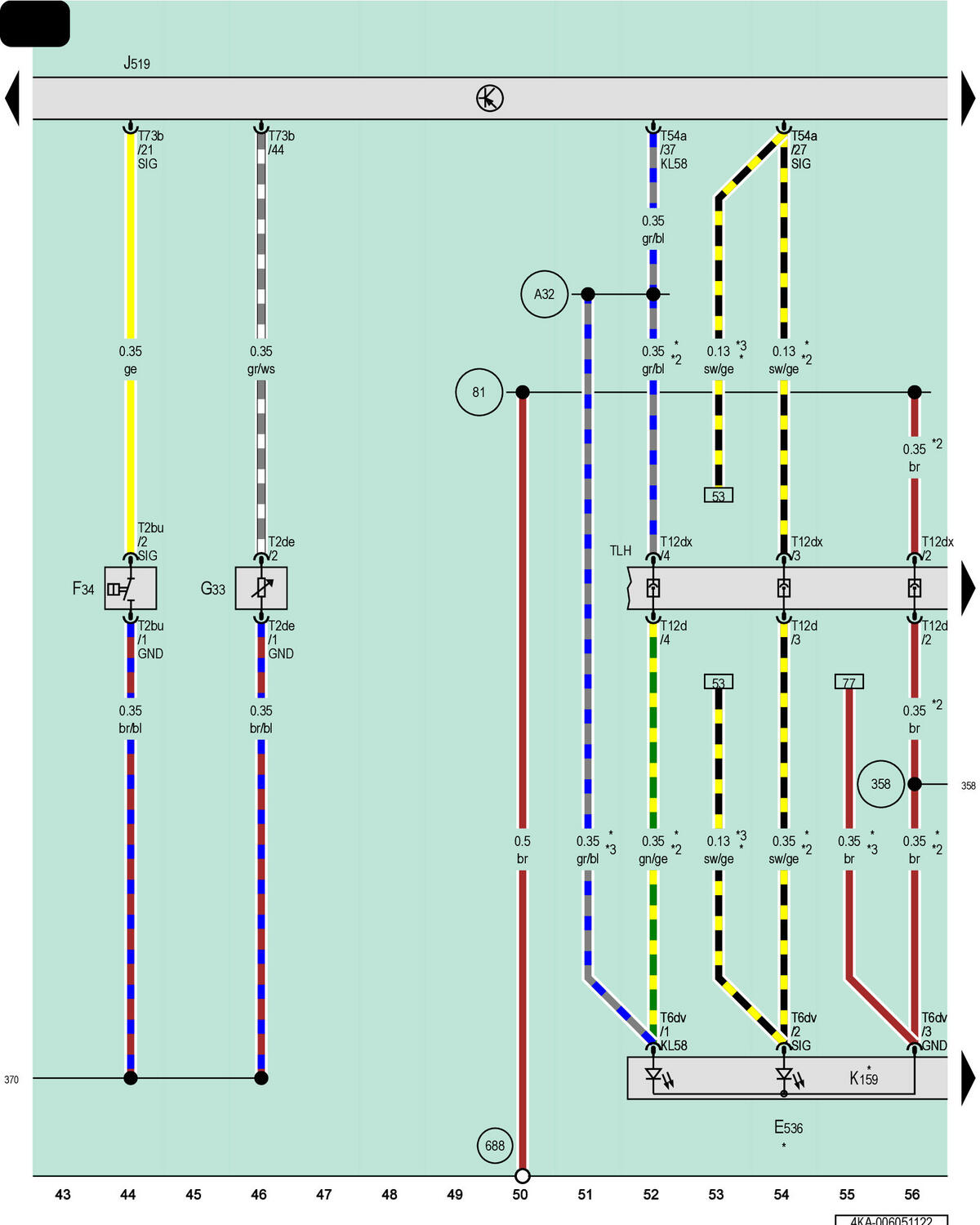

Valet Parking Lock Button, Brake Fluid Level Warning Switch, Windshield Washer Fluid Level Sensor, Vehicle Electrical System Control Module

Courtesy of AUDI OF AMERICA, LLC

E536

Valet Parking Lock Button

F34

Brake Fluid Level Warning Switch

G33

Windshield Washer Fluid Level Sensor

J519

Vehicle Electrical System Control Module

K159

Valet Parking Indicator Lamp

T2bu

2-Pin Connector, Black

T2de

2-Pin Connector, Black

T6dv

6-Pin Connector, Red

T12d

12-Pin Connector, Black

T12dx

12-Pin Connector, Black

T54a

54-Pin Connector, Black

T73b

73-Pin Connector, Black, Black

TLH

Glove Compartment Wiring Harness Coupling Point

81

Ground Connection 1 (in Instrument Panel Wiring Harness)

358

Ground Connection (in Glove Compartment Wiring Harness)

370

Ground Connection 5 (in Main Wiring Harness)

688

Ground Connection 2 on Center Tunnel

A32

Positive Connection (30) (in Instrument Panel Wiring Harness)

*

For USA Only

*2

Through June 2020

*3

From June 2020
