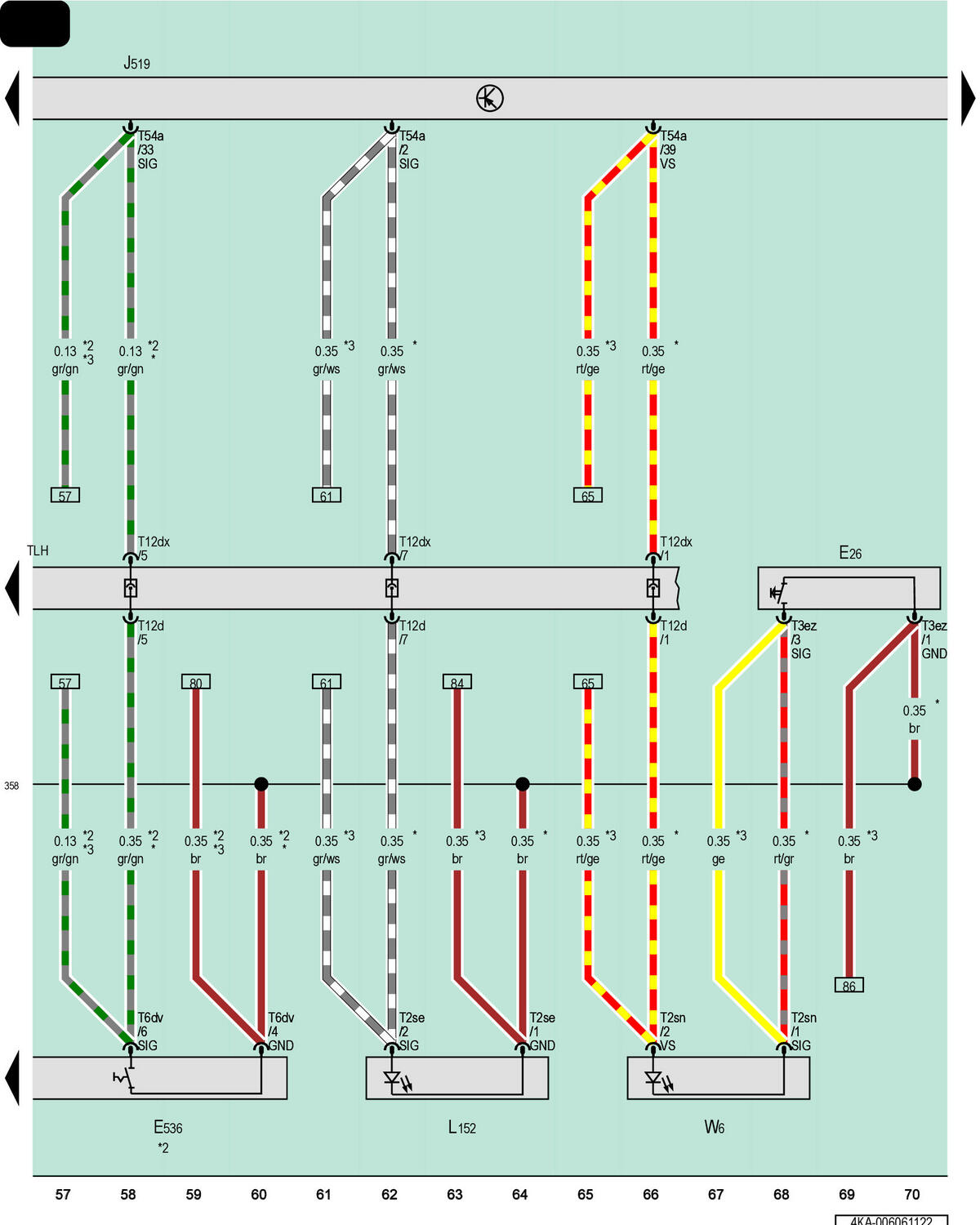

Glove Compartment Lamp Switch, Valet Parking Lock Button, Vehicle Electrical System Control Module, Right Front FOOTWELL Illumination Bulb, Glove Compartment Lamp

Courtesy of AUDI OF AMERICA, LLC

E26

Glove Compartment Lamp Switch

E536

Valet Parking Lock Button

J519

Vehicle Electrical System Control Module

L152

Right Front Footwell Illumination Bulb

T2se

2-Pin Connector, White

T2sn

2-Pin Connector, Black

T3ez

3-Pin Connector, Black

T6dv

6-Pin Connector, Red

T12d

12-Pin Connector, Black

T12dx

12-Pin Connector, Black

T54a

54-Pin Connector, Black

TLH

Glove Compartment Wiring Harness Coupling Point

W6

Glove Compartment Lamp

358

Ground Connection (in Glove Compartment Wiring Harness)

*

Through June 2020

*2

For USA Only

*3

From June 2020
