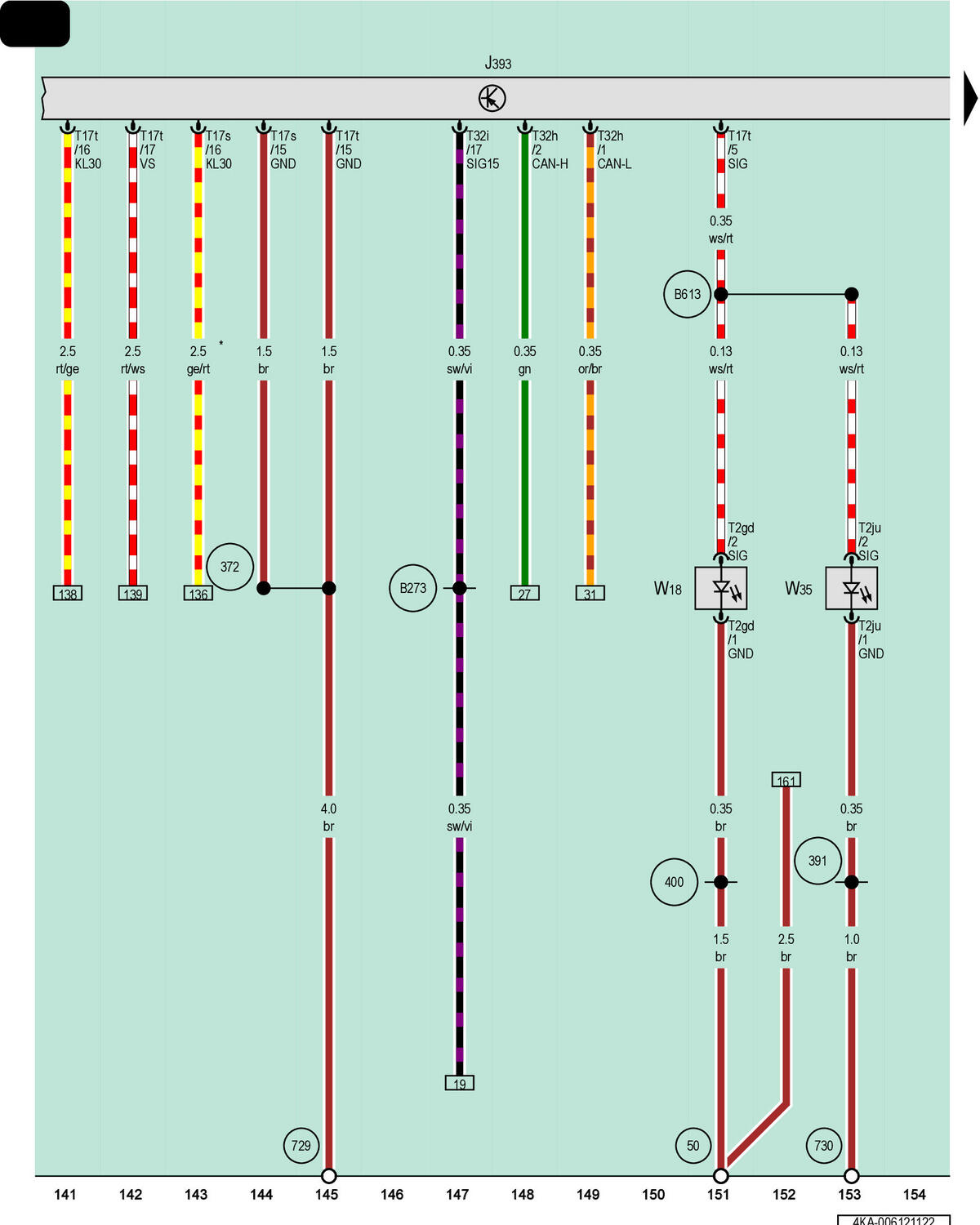

Comfort System Central Control Module, Left Luggage Compartment Lamp, Right Luggage Compartment Lamp
J393
Comfort System Central Control Module
T2gd
2-Pin Connector, White
T2ju
2-Pin Connector, White
T17s
17-Pin Connector, Black
T17t
17-Pin Connector, Brown
T32h
32-Pin Connector, Blue
T32i
32-Pin Connector, Naturally Cloudy, Black
W18
Left Luggage Compartment Lamp
W35
Right Luggage Compartment Lamp
50
Ground Connection in Luggage Compartment, Left
372
Ground Connection 7 (in Main Wiring Harness)
391
Ground Connection 26 (in Main Wiring Harness)
400
Ground Connection 35 (in Main Wiring Harness)
729
Ground Connection on Left Rear Wheel Housing
730
Ground Connection 1 on Right Rear Wheel Housing
B273
Positive Connection (15) (in Main Wiring Harness)
B613
Connection 41 (in Main Wiring Harness)
*
Diameter Depends on Equipment
