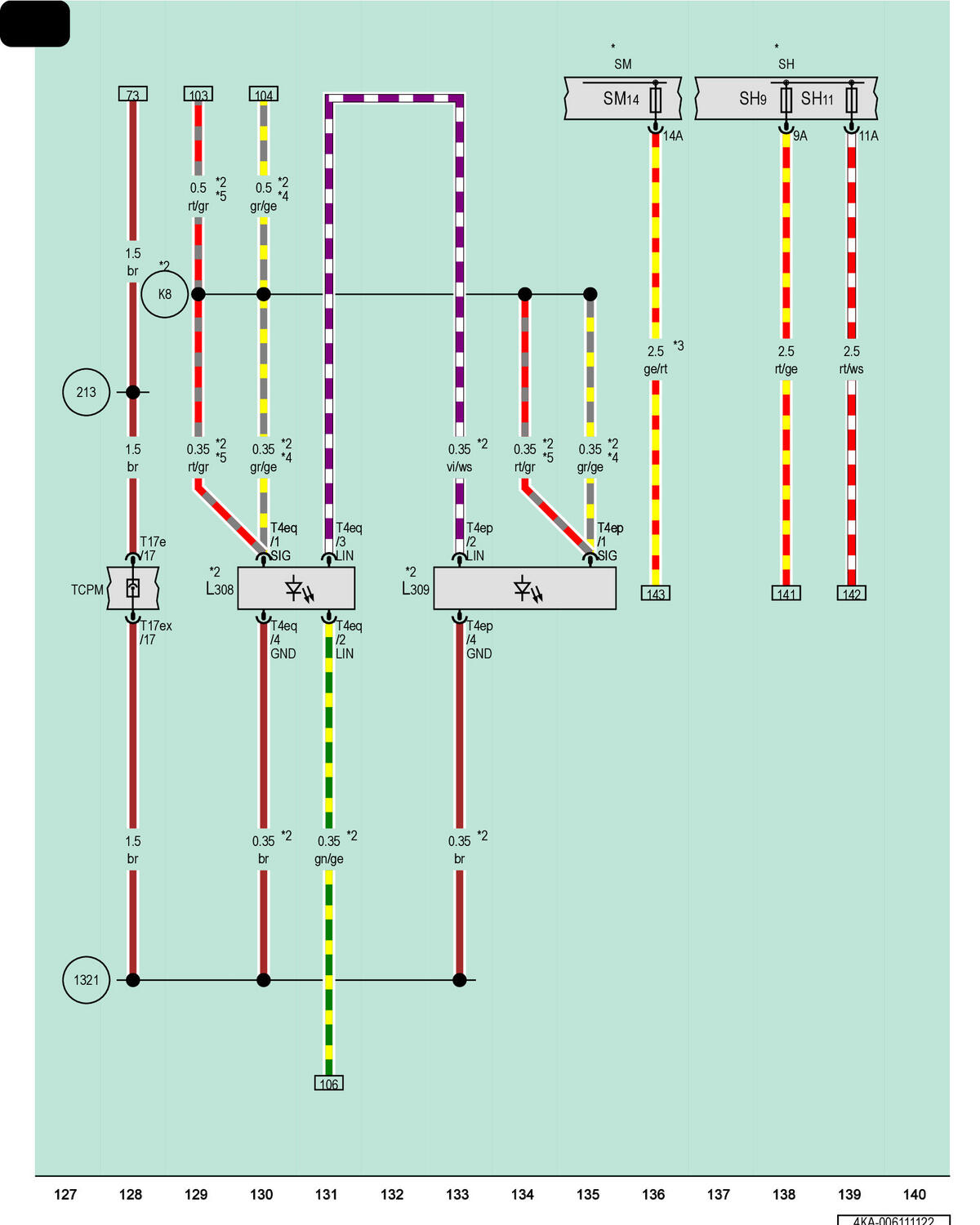

Center Console Contour Illumination Lamp 1, Center Console Contour Illumination Lamp 2

Courtesy of AUDI OF AMERICA, LLC

L308

Center Console Contour Illumination Lamp 1

L309

Center Console Contour Illumination Lamp 2

SH

Fuse Panel H

SH9

Fuse 9 on Fuse Panel H

SH11

Fuse 11 on Fuse Panel H

SM

Fuse Panel M

SM14

Fuse 14 on Fuse Panel M

T4ep

4-Pin Connector, Black

T4eq

4-Pin Connector, Black

T17e

17-Pin Connector, Black

T17ex

17-Pin Connector, Black

TCPM

Coupling Point on Instrument Panel, Center

213

Ground Connection (in Instrument Panel Wiring Harness)

1321

Ground Connection 2 (in Center Console Wiring Harness)

K8

Connection 1 (in Center Console Wiring Harness)

*

Refer to Applicable Wiring Diagram for Fuse Positions

*2

For Vehicles with Ambient Lighting

*3

Diameter Depends on Equipment

*4

Omitted as a Running Change

*5

Running Change
