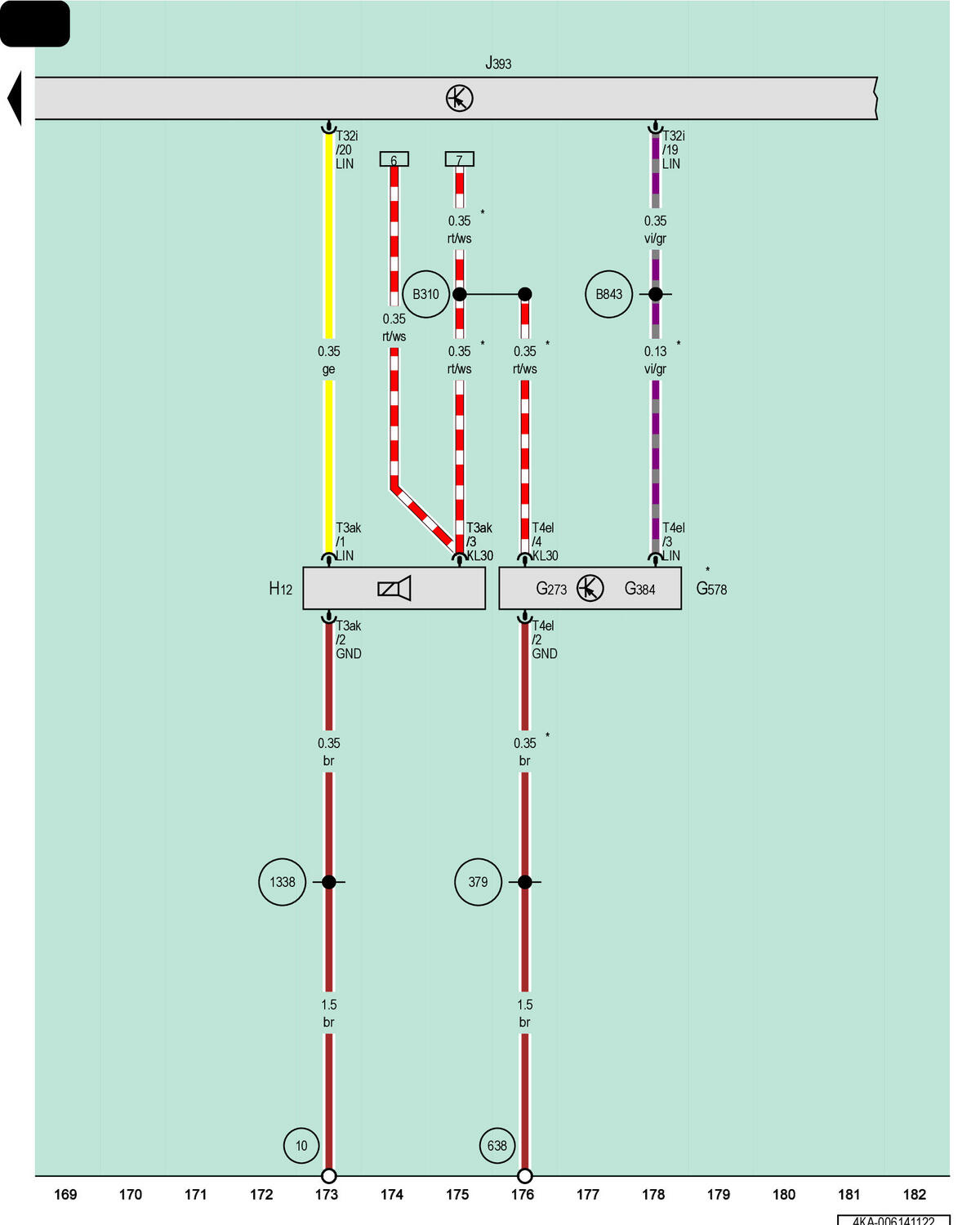

Anti-Theft Alarm System Sensor, Alarm Horn, Comfort System Central Control Module

Courtesy of AUDI OF AMERICA, LLC

G273

Interior Monitoring Sensor

G384

Vehicle Inclination Sensor

G578

Anti-Theft Alarm System Sensor

H12

Alarm Horn

J393

Comfort System Central Control Module

T3ak

3-Pin Connector, Black

T4el

4-Pin Connector, Black

T32i

32-Pin Connector, Naturally Cloudy, Black

Ground Connection in Plenum Chamber

379

Ground Connection 14 (in Main Wiring Harness)

638

Ground Connection on Right A-Pillar

1338

Ground Connection 40 (in Main Wiring Harness)

B310

Positive Connection 14 (30) (in Main Wiring Harness)

B843

LIN Bus Connection 9 (in Main Wiring Harness)

For Vehicles with Anti-Theft Alarm System and Interior Monitoring and Towing Prevention
