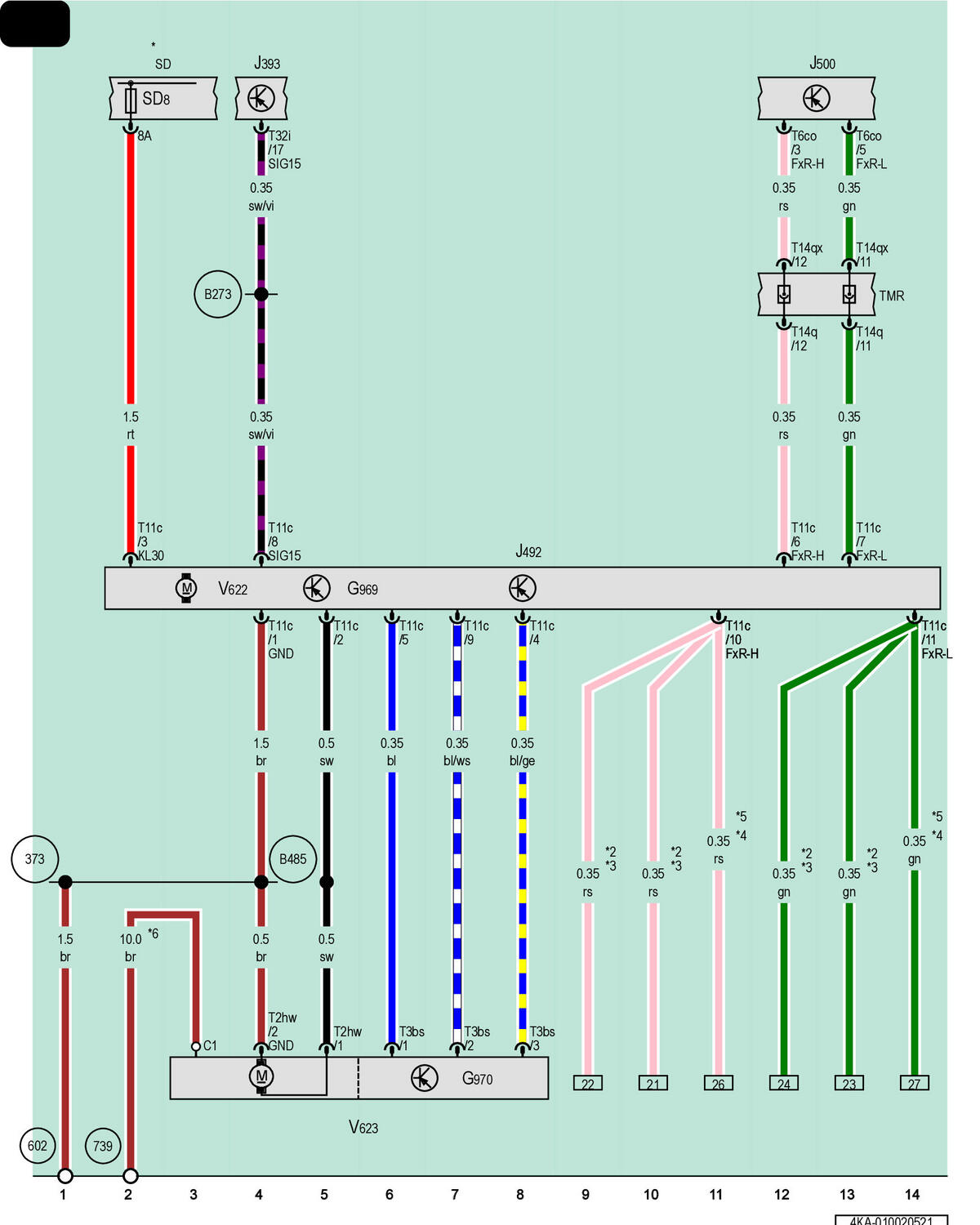

All-Wheel Drive Clutch Position Sensor, Driveshaft Speed Sensor, All-Wheel Drive Control Module, All-Wheel Drive Clutch Actuator, All-Wheel Drive Clutch Actuator 2
G969
All-Wheel Drive Clutch Position Sensor, On the Transmission
G970
Driveshaft Speed Sensor, Near the Rear Axle
J393
Comfort System Central Control Module
J492
All-Wheel Drive Control Module
J500
Power Steering Control Module
SD
Fuse Panel D
SD8
Fuse 8 (On Fuse Panel D)
T2hw
2-Pin Connector, Black
T3bs
3-Pin Connector, Black
T6co
6-Pin Connector, Brown
T11c
11-Pin Connector, Black
T14q
14-Pin Connector, Black
T14qx
14-Pin Connector, Black
T32i
32-Pin Connector, Naturally Cloudy, Black
TMR
Coupling Point in Engine/Motor Compartment, Right
V622
All-Wheel Drive Clutch Actuator, On the Transmission
V623
All-Wheel Drive Clutch Actuator 2, Near the Rear Axle
373
Ground Connection 8 (in Main Wiring Harness)
602
Ground Connection in Left Front Footwell
739
Ground Connection on Underbody, Right
B273
Positive Connection (15) (in Main Wiring Harness)
B485
Connection 21 (in Main Wiring Harness)
*
Refer to Applicable Wiring Diagram for Fuse Positions
*2
For Vehicles with Automatic Transmission
*3
Depending on Equipment
*4
For Vehicles with 8-Speed Automatic Transmission
*5
Omitted as a Running Change
*6
For Vehicles with Hybrid Drive
