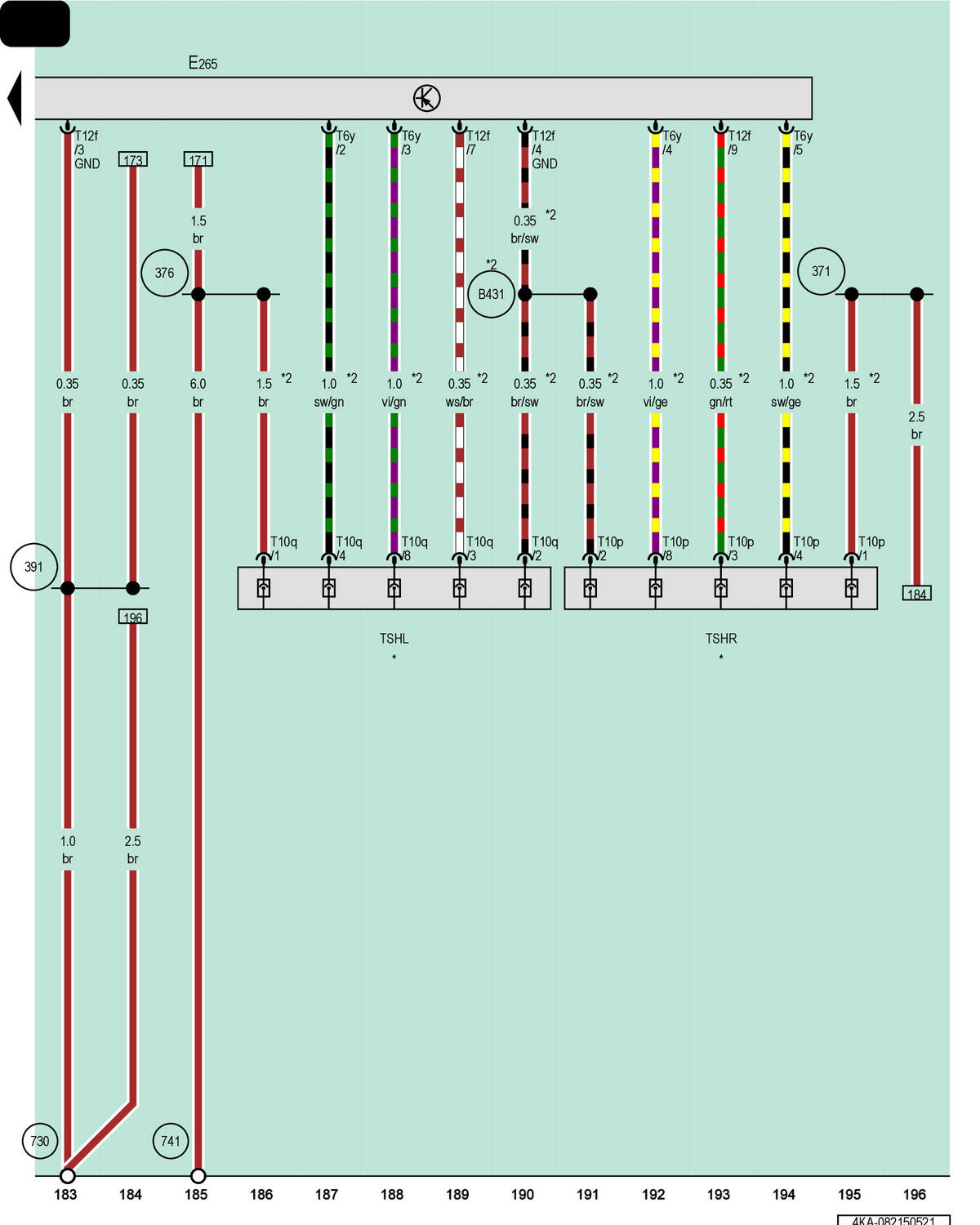

Rear A/C Display Control Head
E265
Rear A/C Display Control Head
T6y
6-Pin Connector, Black
T10p
10-Pin Connector, White
T10q
10-Pin Connector, White
T12f
12-Pin Connector, Black
TSHL
Left Rear Seat Coupling Station
TSHR
Right Rear Seat Coupling Station
371
Ground Connection 6 (in Main Wiring Harness)
376
Ground Connection 11 (in Main Wiring Harness)
391
Ground Connection 26 (in Main Wiring Harness)
730
Ground Connection 1 on Right Rear Wheel Housing
741
Ground Connection Under Left Front Seat
B431
Seat Heating Connection (in Main Wiring Harness)
*
Refer to the Applicable Wiring Diagram for Rear Heated Seats
*2
For Vehicles with Heated Rear Seats
