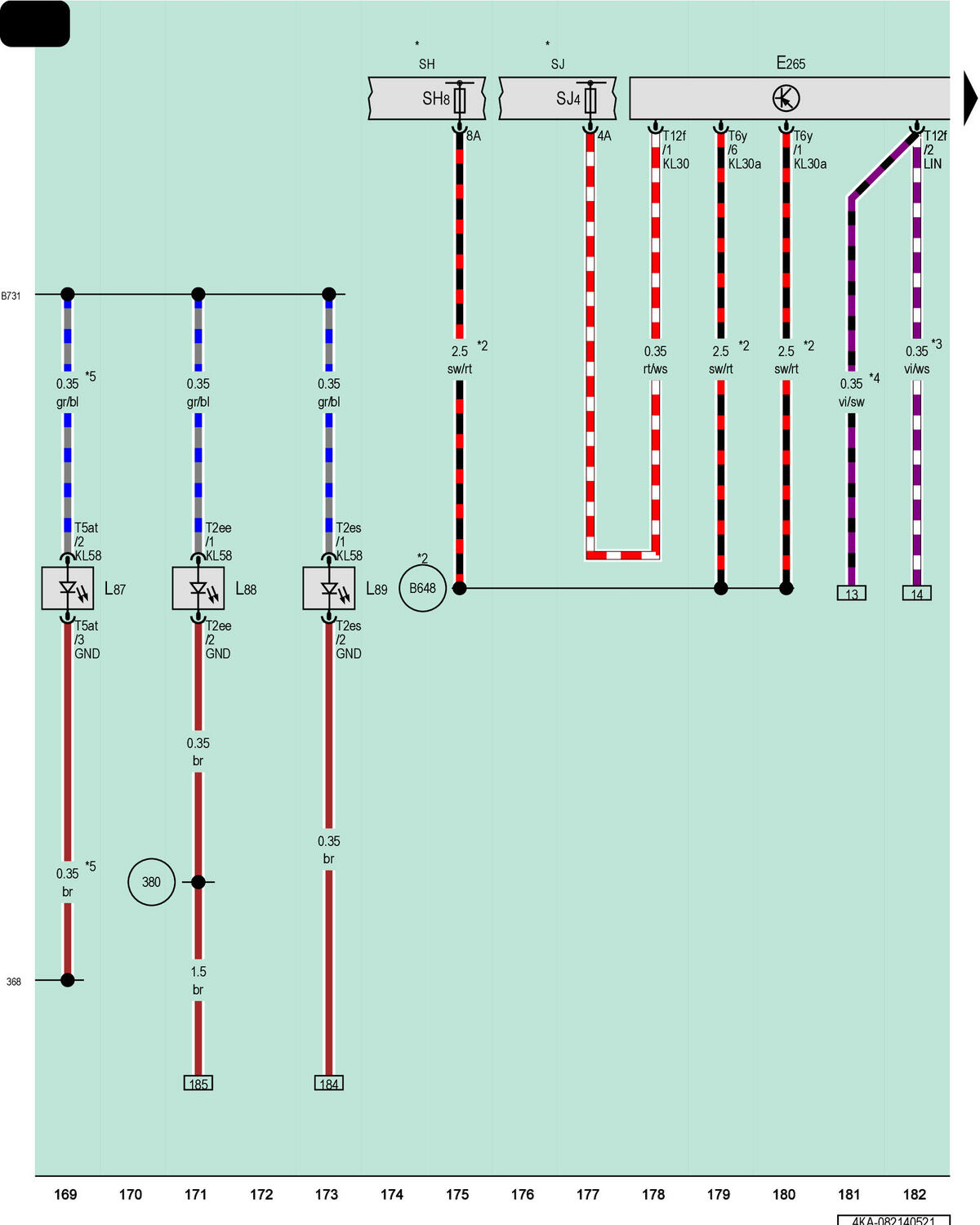

Rear A/C Display Control Head, Rear Center Air Vent Illumination Bulb, Left Rear Air Vent Illumination Bulb, Right Rear Air Vent Illumination Bulb

Courtesy of AUDI OF AMERICA, LLC

E265

Rear A/C Display Control Head

L87

Rear Center Air Vent Illumination Bulb

L88

Left Rear Air Vent Illumination Bulb

L89

Right Rear Air Vent Illumination Bulb

SH

Fuse Panel H

SJ4

Fuse 4 on Fuse Panel J

SH8

Fuse 8 on Fuse Panel H

SJ

Fuse Panel J

T2ee

2-Pin Connector, Black

T2es

2-Pin Connector, Black

T5at

5-Pin Connector, Black

T6y

6-Pin Connector, Black

T12f

12-Pin Connector, Black

368

Ground Connection 3 (in Main Wiring Harness)

380

Ground Connection 15 (in Main Wiring Harness)

B648

Heated Seat Connection 5 (in Main Wiring Harness)

B731

Connection 58s (in Main Wiring Harness) 1

*

Refer to Applicable Wiring Diagram for Fuse Positions

*2

For Vehicles with Heated Rear Seats

*3

Omitted as a Running Change

*4

Running Change

*5

Depending on Equipment
